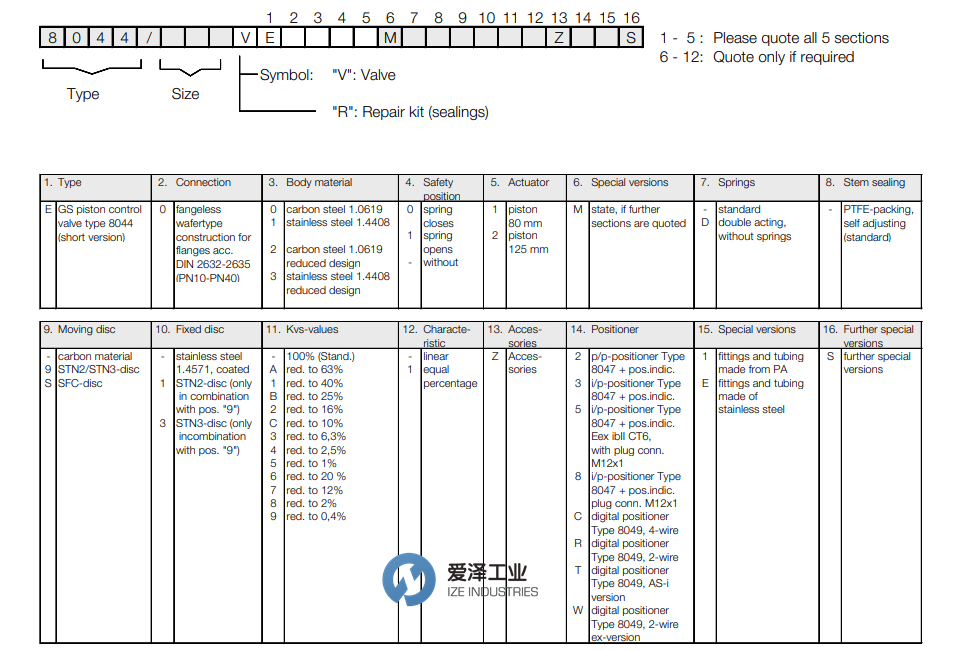

SCHUBERT&SALZER控制閥8044/015VE0101M-912-ZC技術參數
8044 |
015=size |
"V": Valve |
E=GS piston control valve type 8044 (short version) |
0=fangeless wafertype construction for flanges acc. DIN 2632-2635 (PN10-PN40) |
1=stainless steel 1.4408 |
0=spring closes |
1=piston 80 mm |
M=state, if further sections are quoted |
9=STN2/STN3-disc |
1=STN2-disc (only in combination with pos. "9") |
2=red. to 16% |
Z=Acces- sories |
C=digital positioner Type 8049, 4-wire |

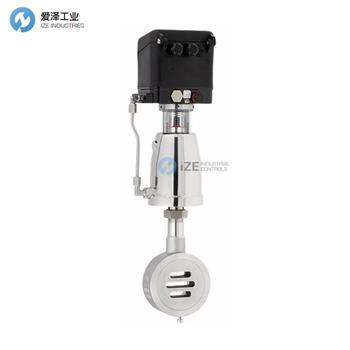

SCHUBERT&SALZER控制閥8044系列介紹
The sliding gate control valve type 8044 in short design with piston actuator and integrated positioner is due to its compact design universally applicable for neutral and aggressive media in the chemical industry, process engineering and plant design. Due to the direct and backlash-free installation of the positioner on that piston actuator, these valves have no exposed moving parts and are characterized by a high control quality and control dynamics.
Size:DN15 - DN150
Pressure:PN 10/40
Material:Stainless steel 1.4581 / 1.4408
Carbon steel 1.0619
Temperature:Media temperature: -60°C up to 230 °C Special versions available on request.
帶有活塞執行器和集成定位器的 8044 型滑動閘門控制閥的短設計因其緊湊的設計而普遍適用于化學工業、過程工程和工廠設計中的中性和腐蝕性介質。 由于定位器直接且無間隙安裝在活塞執行器上，這些閥門沒有暴露的運動部件，并具有高控制質量和控制動態的特點。
尺寸：DN15 - DN150
壓力：PN 10/40
材質：不銹鋼1.4581 / 1.4408
碳鋼 1.0619
溫度：介質溫度：-60°C 至 230°C 可應要求提供特殊版本。
SCHUBERT&SALZER控制閥8044系列選型
SCHUBERT&SALZER控制閥8044系列其他常用型號：
SCHUBERT&SALZER 8044/015VE0101M-912-ZC
SCHUBERT&SALZER 8044/025VE0001M--S-1-ZR
SCHUBERT&SALZER Control valve NEW + ORIGINAL+ ONE YEAR WARRANTY
