FABRI-VALVE手動閘閥OM150R FABRI產品參數
Specifications | |
Size Range: | DN 50-600 (2” – 24”) |
Pressure Rating: | 10.3 bar (150 psi) CWP (cold working pressure) |
Temperature Rating: | 77?C (170?F) Standard Higher temperatures available upon request |
Flange Drilling: | ANSI 125/150 Drilling Standard. Contact factory for alternate flange drilling. |
FABRI-VALVE手動閘閥OM150R FABRI產品介紹

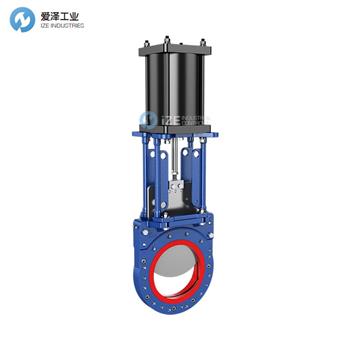

The Fabri-Valve OM150 Urethane Lined Knife Gate Valve provides an economical solution for abrasive and corrosive applications. The OM150 does not discharge process media to the environment. Central to the design of the valve is the most robust perimeter seal in the industry, which provides reliable bi-directional, bubble-tight shutoff.
Each valve is lined with our proprietary urethane material which protects the valve body from the abrasive and corrosive media that the OM150 is designed for. The OM150 body halves are machined to lock in place, the urethane lining that is molded and bonded to each body half. This ensures consistent and repeatable, open and closing gate thrust requirements in any installation. The seal groove is specially designed to prevent seal pull-out but also allows the seal to move and prevent overcompression.
Fabri-Valve OM150 聚氨酯襯里刀閘閥為磨蝕性和腐蝕性應用提供經濟的解決方案。 OM150 不會將過程介質排放到環境中。閥門設計的核心是業內最堅固的周邊密封，可提供可靠的雙向、氣密關閉。
每個閥門都襯有我們專有的聚氨酯材料，可保護閥體免受 OM150 設計用于磨損和腐蝕性介質的影響。 OM150 車身半部經過機械加工以鎖定到位，聚氨酯內襯成型并粘合到每個車身半部。這確保了任何安裝中一致且可重復的開門和關門推力要求。密封槽專門設計用于防止密封件拉出，但也允許密封件移動并防止過度壓縮。
FABRI-VALVE手動閘閥其他常見型號：
FABRI-VALVE OM150R FABRI
FABRI-VALVE C45
FABRI-VALVE C67
FABRI-VALVE CF134
FABRI-VALVE CF33/133
FABRI-VALVE CF37
FABRI-VALVE valve NEW + ORIGINAL+ ONE YEAR WARRANTY
