DUPLOMATIC電磁換向閥DS3-TA/11N-A110K1技術參數
Code | DS3-TA/11N-A110K1 |
Model | DS = Directional valve solenoid operated |
Size | 3 = ISO 4401-03 |
Spool type | TA = 1 solenoid side A, 2 positions with return spring |
Series | 11 |
Seals: | N = NBR seals for mineral oil (standard) |
DC power supply | A110 = 110 V - 50 Hz / 120 V - 60 Hz |
Coil electrical connection | K1 = plug for connector type EN 175301-803 (ex DIN 43650) (standard) |
DUPLOMATIC電磁換向閥DS3系列介紹
DS3 是滑閥方向閥，用于控制流道和流動方向，用于底板安裝。它們有 3 端口和 4 端口設計，帶有彈簧復位或機械制動。閥體由高強度鑄鐵制成，內部通道寬闊，以更大限度地減少流動壓降。使用具有可互換線圈的濕式電樞螺線管。
該閥可配備直流或交流電磁閥。通過使用帶有內置整流橋的連接器，直流螺線管也可以由交流電源供電。
除了標準手動超控之外，還有杠桿、推動超控、引導裝置和機械制動裝置。
DS3 閥門系列還包括高 IP 等級和耐腐蝕性版本以及帶有 UL 認證線圈的版本。
DS3 are spools directional valves that control passage and direction of a flow, for subplate mounting. They are available with 3-ports and 4-ports design, with spring return or mechanical detent. The valve body is made with high strength iron castings provided with wide internal passages in order to minimize the flow pressure drops. Wet armature solenoids with interchangeable coils are used.
The valve is available with DC or AC solenoids. DC solenoids can also be fed with AC power supply, by using connectors with a built-in rectifier bridge.
Alternative to the standard manual override there are levers, push override, boot and mechanical detent devices.
DS3 valves range also includes versions for high IP degree and corrosion resistance and a version with UL certified coils.

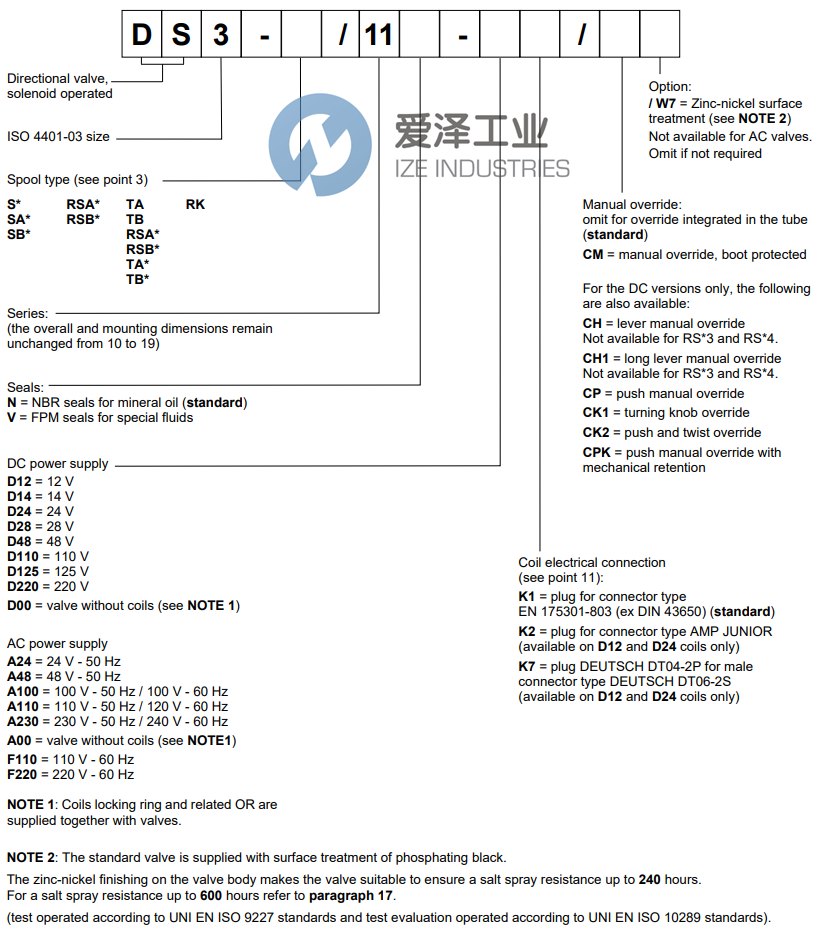

DUPLOMATIC電磁換向閥DS3系列選型
DUPLOMATIC電磁換向閥DS3系列其他常用型號：
DUPLOMATIC DS3-S3/11N-D24K1
DUPLOMATIC DS3-S2/11N-D12
DUPLOMATIC DS3-TA/11N-D24K1
DUPLOMATIC DS3-TA/11N-A110K1
DUPLOMATIC DS3-S4/10N-A230K1
DUPLOMATIC DS3-S1/10N-D24K1/10
DUPLOMATIC DS3-S1/11V-D24K7/W7
DUPLOMATIC DS3-S2/11N-SD24K1
DUPLOMATIC DS3-S3/11N-A110K1
DUPLOMATIC DS3-TB/11V-D24K7
DUPLOMATIC DS3-TA23/11ND24K1
