LUST驅動器CDA32.004技術參數
Techn. Data Order code | CDA32.004 |
Output, motor side | |
Recommended rated power with 4- pole standard motor | 0.75 kW |
Device rated power | 1.7 kVA |
Voltage | 3 x 0 ... 230 V |
Effected rated current (IN at 4/8 kHz) | 4.0 A |
Peak current 1,8 x IN (4/8 kHz) for 30s | 7.2 A2) |
Rotating field frequency | 0 ... 400 Hz |
Switching frequency of power stage | 4, 8, 16 kHz (factory setting 8 kHz at 40° C cooling air temperature) |
Input, mains side | |
Mains voltage | 1 x 230 V -20 % +15 % |
Asymmetry of mains voltage | - |
Frequency | 50/60 Hz ±10 % |
Power loss 4, 8 (16) kHz | 48, 55 W |
Braking chopper power electronics | |
Minimum ohmic resistance of an externally installed braking resistor | 100 ? |

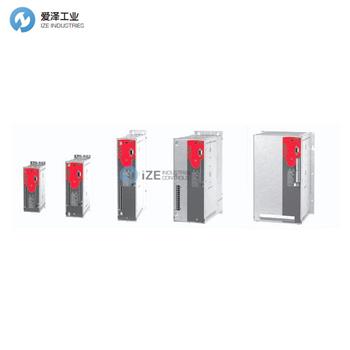

LUST驅動器CDA3000系列介紹
CDA 3000 is the result of years of practical experience in drive technology for automation of machinery and plant. This inverter system is fit for the ever shortening innovation cycle in the automation of machinery.
Founded on tradition
We have continued our long-standing tradition of setting control standards in the drive technology as well as creating standards for the future-oriented flexibility in machinery and plant.
Fit for the future
The inverter module is the central unit of the system and information carrier for the various operator, user and communication modules. All modules are standalone components with all necessary certificates and are tested in terms of connectivity. The interfaces to the docking modules are open for new automation design concepts in future.
CDA 3000是機械和設備自動化驅動技術多年實踐經驗的結果。該逆變器系統適用于機械自動化領域不斷縮短的創新周期。
建立在傳統之上
延續了在驅動技術領域制定控制標準以及為機械和工廠面向未來的靈活性制定標準的悠久傳統。
適應未來
逆變器模塊是系統的中央單元，也是各種操作員、用戶和通信模塊的信息載體。 所有模塊都是具有所有必要證書的獨立組件，并在連接性方面進行了測試。 對接模塊的接口對未來新的自動化設計概念開放。
LUST驅動器CDA3000系列其他常用型號：
LUST CDA32.004
LUST CDA32.006
LUST CDA32.008
LUST CDA34.003
LUST CDA34.005
LUST CDA34.006
LUST CDA34.008
LUST CDA34.010
LUST CDA34.014
LUST CDA34.017
LUST CDA34.024
LUST CDA34.032
LUST CDA34.045
LUST CDA34.060
LUST CDA34.072
LUST CDA34.090
LUST CDA34.110
LUST CDA34.143
LUST CDA34.170
LUST CDA34.250
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于LUST驅動器CDA32.004的疑問，請隨時與我們聯系（021-31006702）。我們將盡全力解決您的問題。
有關LUST驅動器CDA32.004更詳細的信息或者購買LUST相關產品，請致電愛澤工業。
If you have any question, please feel free to dial 0086-21-3100 6702 or browse our website: jjxdch.cn.
LUST驅動器CDA32.004技術資料
