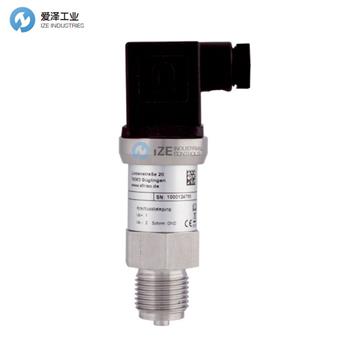

AFRISO壓力傳感器DMU01ST規格描述
Technical specifications | |
Measuring accuracy | Deviation from the characteristic curve according to IEC 60770 – limit point calibration (non-linearity, hysteresis, repeatability) -1/0 bar < ± 1 % FSO < ± 0.5 % FSO |
Measuring range | See ordering table |
Overpressure safety | |
At least 2 x FS | |
250 bar: | 400 bar |
400 bar: | 650 bar |
Burst pressure | |
< 400 bar: | At least 3 x FS |
400 bar: | 1000 bar |
Operating temperature range | |
Medium: | -25/+125 °C |
Ambient: | -25/+85 °C |
Storage: | -40/+85 °C |
Temperature error band | ≤ ± 0.3 % FSO/10 K In compensated range -25/+85 °C |
Dynamic characteristics | |
Response time: | ≤ 10 ms |
Process connection | |
G?B EN 837-1/7.3 | |
G?B DIN 3852 type E with protruding diaphragm | |
Material | |
Housing: | Stainless steel 304 |
Pressure connection: | Stainless steel 304 |
Diaphragm: | Ceramic (Al2O3 96 %) |
Seal: | FKM (Viton) |
Supply voltage | DC 8 – 32 V |
Output signal | 2-wire, 4–20 mA |
Load | RMax = [(UB – UBMin)/0.02 A] Ω |
Current input | < 25 mA |
Electrical protection | Short circuit proof and protected against reverse polarity |
Degree of protection | IP 65 (EN 60529) |
CE conformity | EMC Directive 2014/30/EU |
AFRISO壓力傳感器DMU01系列介紹
Proven ceramic technology
No mechanical ageing of the measuring cell
No transmission liquid
Versions for relative pressure and absolute pressure
Small temperature error
Application
For electronic pressure measurement in industrial applications (such as hydraulic and pneumatic applications as well as mechanical and plant engineering).
久經考驗的陶瓷技術
測量元件無機械老化
無傳輸液
相對壓力和絕對壓力版本
溫度誤差小
應用
用于工業應用中的電子壓力測量（例如液壓和氣動應用以及機械和設備工程）。
