CONDOR壓力開關MDR-F系列規格
Technical data MDR-F standard version | |
Rated operational current I e AC 1 Ue=240 V (1~) | 10A |
Rated operational current I e AC 15 Ue=240 V (1~) | 4A |
Rated operational current Ie DC 13 Ue=240 V (1~) | 0,1 A |
Permissible motor rating 1~ 230 V | 0,55 kW |
Motor switching capacity (UL 508, CSA 22.2) Ue=125 VAC | 0,5 HP |
Motor switching capacity (UL 508, CSA 22.2) Ue=250 VAC | 0,5 HP |
Rated operational current I e (UL 508, CSA 22.2) Ue=250 VAC | 15 A |
Rated operational current I e (UL 508, CSA 22.2) Ue=12 VDC | 6A |

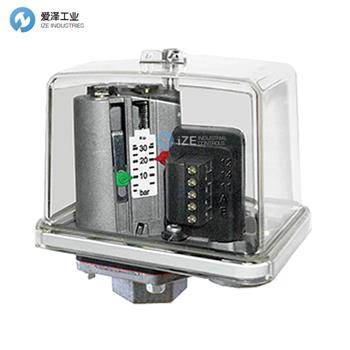

CONDOR壓力開關MDR-F系列產品介紹
? 1 SPDT / 2 DPDT
? Pressure range up to 250 bar
? GL / VdS / UL approvals -optional
? Scale for simple adjustments
? Wide range of variations
? Acc. to EN 60947
Applications
The Condor pressure switch series, MDR-F can be universally used and are suitable for:
? Monitoring and controlling the pressure oil liquids or gaseous media in pipeline, tanks, vats, pressure vessels, and installations
? Tasks in process control, cooling, pneumatics and hydraulics
? Pressure monitoring of cooling circuits and lubrication systems on various types of machinery
? Automatic switching of pump and compressor motors for supplying water to dwellings, booster pumps, fire-fighting equipment and on compresses air systems
Applications:
Air pressure technology, water pressure technology, construction machinery, water-based extinguishing systems, fire protection units, oil pressure monitoring, mining, chemical, industry, railway vehicles, offshore, shipping, vacuum technology, calibration technology, heating systems
? 1 個單刀雙擲 / 2 個雙刀雙擲
? 壓力范圍高達 250 bar
? GL / VdS / UL 認證 - 可選
? 簡單調整的比例
? 范圍廣泛的變化
? 加速度。符合 EN 60947
應用
Condor 壓力開關系列 MDR-F 可通用，適用于：
? 監測和控制管道、罐、罐、壓力容器和裝置中的壓力油液體或氣體介質
? 過程控制、冷卻、氣動和液壓方面的任務
? 各種類型機械的冷卻回路和潤滑系統的壓力監測
? 自動切換泵和壓縮機電機，用于向住宅、增壓泵、消防設備和壓縮空氣系統供水
應用：
氣壓技術、水壓技術、工程機械、水基滅火系統、消防裝置、油壓監測、礦山、化工、工業、鐵路車輛、海洋、船舶、真空技術、校準技術，供暖系統
CONDOR壓力開關MDR-F系列其他型號：
CONDOR MDR-F 2H-S 253501
CONDOR MDR-F 2HG-S 253518
CONDOR 254836
CONDOR MDR-F 4HG-S 253532
CONDOR MDR-F 8H-S 253549
CONDOR MDR-F 8HG-S 253556
CONDOR MDR-F 10H-S 253563
CONDOR MDR-F 10HG-S 253570
CONDOR MDR-F 16H-S 253587
CONDOR MDR-F 16HG-S 253594
CONDOR MDR-F 32H-S 253600
CONDOR MDR-F 32HG-S 253617
CONDOR Pressure Switch NEW + ORIGINAL+ ONE YEAR WARRANTY
