EDDINGTON流量調節器FR-038-S技術參數
Part Number | FR-038-S |
Flow (GPM) | .06 to 1.0 |
Inlet Connection | 3/8" FNPT |
Diameter (inches) | 7/8" HEX |
Length (inches) | 1 3/4" |
EDDINGTON流量調節器介紹
Eddington流量調節器設計用于在很寬的壓降范圍內提供恒定體積的水流。通過使用靈活的孔板，可以保持恒定的水流。流速在15到125 psi之間保持在+ 15%以內。流量因制造公差和水溫而異。Eddington生產各種材料的流量調節器，例如鍍鎳黃銅、316 型不銹鋼和 PVC。Eddington 流量調節器具有各種流量，包括 3/8"、1/2"、3/4"、1" FNPT和1 1/4"、1 1/2"、2"、2 1/2" , 和 3" MNPT，流速范圍為每分鐘0.5到120加侖 (GPM)。我們還使用為惡劣環境和條件提供超強保護的標簽。它們由防水和抗撕裂的耐用聚酯制成，提供耐用且安全的保護。所有Eddington流量調節器都標有指示流動方向的箭頭。為確保正常運行，請始終將調節器安裝時箭頭指向下游。
The Eddington Flow Regulator is designed to deliver a constant volume of water flow over a wide pressure drop range. The constant flow of water is maintained by the use of the flexible orifice. The flow rate is maintained within + 15% between 15 and 125 psi. The flow rate varies due to manufacturing tolerances and water temperature. Eddington Industries manufactures Flow Regulators in various materials such as Nickel Plated Brass, Type 316 Stainless Steel, and PVC. Eddington Flow Regulators come in various flow rates and are 3/8", 1/2", 3/4", 1" FNPT, and 1 1/4", 1 1/2", 2", 2 1/2", and 3" MNPT and flow rates range from 0.5 to 120 gallons per minute (GPM). We also use labels that provide extra-strong protection for harsh environments and conditions. They are constructed from durable polyester that is water resistant and tear resistant providing durble and secure protection. All Eddington Flow Regulators are marked with an arrow indicating direction of flow. To ensure proper operation, always install regulator with the arrow pointed downstream.

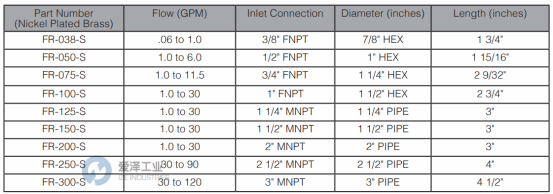

EDDINGTON流量調節器選型
EDDINGTON流量調節器其他常用型號：
EDDINGTON FR-038-S
EDDINGTON FR-050-S
EDDINGTON FR-075-S
EDDINGTON FR-100-S
EDDINGTON FR-125-S
EDDINGTON FR-150-S
EDDINGTON FR-200-S
EDDINGTON FR-250-S
EDDINGTON FR-300-S
EDDINGTON FLOW REGULATORS NEW + ORIGINAL+ ONE YEAR WARRANTY
