Travel | |
Adjustable travel for | Direct attachment to Type 3277: 3.6 to 30 mm |
Travel range | Adjustable within the initialized travel/angle of rotation of the valve; travel can be restricted to 1/5 at the maximum. |
Set point w | |
Signal range | 4 to 20 mA · Two-wire device, reverse polarity protection · Minimum span 4 mA |
Static destruction limit | 40 V, internal current limit approx. 40 mA |
Minimum current | 3.75 mA for display/operation (HART? communication and configuration) |
Load impedance | ≤ 9.3 V (corresponds to 465 ? at 20 mA) |
Supply air | |
Supply air | 1.4 to 7 bar (20 to 105 psi) |
Air quality acc. to ISO 8573-1 | Max. particle size and density: Class 4 |
Hysteresis | ≤0.3 % |
Sensitivity | ≤0.1 % |
Characteristic | Linear/Equal percentage/Reverse equal percentage/SAMSON butterfly valve |
Transit time | Venting or filling with air adjustable separately up to 240 s by software |
Direction of action | Reversible |
Air consumption, steady state | Independent of supply air approx. 65 ln/h |
帶 HART通信的智能定位器
SAM數字就緒
壓鑄鋁或不銹鋼外殼
根據IEC 60534-6、VDI/VDE 3847或SAMSON整體附件連接到線性執行器
根據VDI/VDE 3845連接到旋轉執行器
連接到帶3710型反向放大器的雙作用執行器
用于控制閥的集成EXPERTplus診斷
非接觸式位置感應
帶有NAMUR Recommendation NE 107狀態和設備消息的純文本顯示
集成診斷功能
簡單的一鍵式菜單驅動操作
由于可選擇的讀取方向，LCD 在任何安裝位置都易于讀取
可使用TROVIS-VIEW軟件通過SSP接口在計算機上進行配置
具有四種不同初始化模式的可變自動啟動
Sub（替代）初始化模式允許定位器在緊急情況下在工廠運行時啟動，而無需改變閥門位置。
所有參數保存在非易失性EEPROM中
具有465 Ω小電氣負載的兩線制系統
可調緊閉功能
連續零位監控集成溫度傳感器和運行時間計數器
自我診斷，消息作為壓縮狀態符合 NAMUR 建議 NE 107

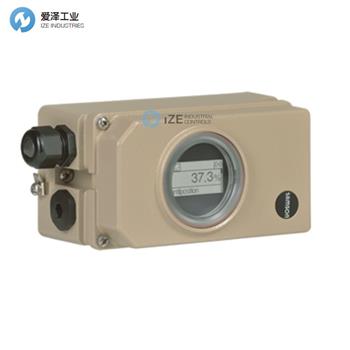

Smart positioner with HART? communication
SAM DIGITAL READY
Die-cast aluminum or stainless steel housing
Attachment to linear actuators according to IEC 60534-6, VDI/VDE 3847, or SAMSON integral attachment
Attachment to rotary actuators according to VDI/VDE 3845
Attachment to double-acting actuators with Type 3710 Reversing Amplifier
Integrated EXPERTplus diagnostics for control valves
Non-contact position sensing
Plain-text display with NAMUR Recommendation NE 107 states and messages on the device
Integrated diagnostic functions
Simple one-knob, menu-driven operation
LCD easy to read in any mounting position thanks to selectable reading direction
Configurable with a computer over the SSP interface using the TROVIS-VIEW software
Variable, automatic start-up with four different initialization modes
Sub (substitution) initialization mode allows the positioner to be started up in case of emergency whilst the plant is running without having to change the valve position.
All parameters saved in non-volatile EEPROM
Two-wire system with a small electrical load of 465 ?
Adjustable tight-closing function
Continuous zero monitoring ntegrated temperature sensor and operating hours counter
Self-diagnostics, messages as condensed state conforming to NAMUR Recommendation NE 107
