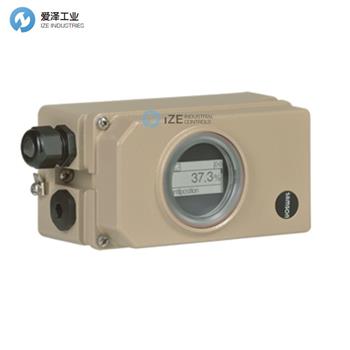

SAMSON定位器3730-3系列技術參數
Travel | |
Adjustable travel for | Direct attachment to Type 3277: 3.6 to 30 mm |
Travel range | Adjustable within the initialized travel/angle of rotation of the valve; travel can be restricted to 1/5 at the maximum. |
Set point w | |
Signal range | 4 to 20 mA · Two-wire device, reverse polarity protection · Minimum span 4 mA |
Static destruction limit | 40 V, internal current limit approx. 40 mA |
Minimum current | 3.75 mA for display/operation (HART? communication and configuration) |
Load impedance | ≤ 9.3 V (corresponds to 465 ? at 20 mA) |
Supply air | |
Supply air | 1.4 to 7 bar (20 to 105 psi) |
Air quality acc. to ISO 8573-1 | Max. particle size and density: Class 4 |
Hysteresis | ≤0.3 % |
Sensitivity | ≤0.1 % |
Characteristic | Linear/Equal percentage/Reverse equal percentage/SAMSON butterfly valve |
Transit time | Venting or filling with air adjustable separately up to 240 s by software |
Direction of action | Reversible |
Air consumption, steady state | Independent of supply air approx. 65 ln/h |
SAMSON定位器系列其他常用型號:
SAMSON 3793
SAMSON 3730-1
SAMSON 3730-3
SAMSON 3730-6
SAMSON 3725
SAMSON 3731-3
SAMSON 3967
SAMSON 4763
SAMSON 3710
SAMSON 3730-0
SAMSON 3730-4
SAMSON 3730-5
SAMSON 3730-310000
SAMSON Locator NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年,定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣,液壓以及氣動解決方案的合作伙伴,我們利用我們的全球協作團隊,為客戶提供先進解決方案,市場知識以及相關增值服務來幫助優化客戶的工作效率,提高可靠性和安全性,致力于成為工業產品和解決方案的優質渠道。
如果有任何關于SAMSON定位器3730-3系列的疑問,請隨時與我們溝通(021-31006702)。我們將盡全力解決您的問題。
If you have any question for SAMSON products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
SAMSON定位器3730-3系列3730-310000技術參數及介紹
