SAMSON定位器3730-1系列技術參數
Travel Adjustable | Direct attachment to Type 3277 Actuator 3.6 to 30 mm |
Travel range | Travel range |
Set point w | Signal range 4 to 20 mA · Two-wire device, reverse polarity protection |
Static destruction limit 100 mA | 3.7 mA |
Load impedance | ≤6 V (corresponding to 300 Ω at 20 mA) |
Hysteresis | ≤1 % |
Sensitivity | ≤0.1 % |
Transit time | <0.5 s for initialization not permissible · Adaptation over volume restriction Q |
Direction of action | Reversible |
Air consumption | Independent from supply pressure approx. 110 ln/h |
Permissible ambient temperature | –20 to 80 °C in all versions |
Influences | Temperature ≤0.15 %/10 K |
Degree of protection | IP 66/NEMA 4X |
Weight | 1.0 kg · Special version in stainless steel: 2.2 kg |

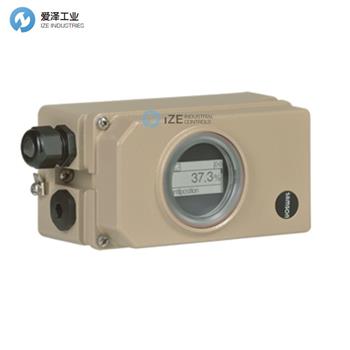

SAMSON定位器3730-1系列介紹
電動氣動定位器
壓鑄鋁或不銹鋼外殼
根據 IEC 60534-6、VDI/VDE 3847 或 SAMSON 整體附件連接到線性執行器
根據 VDI/VDE 3845 連接到旋轉執行器
使用 3710 型換向放大器連接到雙作用執行器
任何可能的定位器安裝位置
簡單的一鍵式菜單驅動操作
由于可旋轉的閱讀方向，在任何安裝位置都易于閱讀
變量自動啟動
預設參數，只有偏離標準的值需要調整
校準的行程傳感器，沒有易磨損的齒輪
所有參數保存在非易失性 EEPROM 中
具有 300 Ω 小電氣負載的兩線制系統
可啟動緊閉功能
自動零位監控
兩個標準可編程位置警報
Electropneumatic positioner
Die-cast aluminum or stainless steel housing
Attachment to linear actuators according to IEC 60534-6, VDI/VDE 3847, or SAMSON integral attachment
Attachment to rotary actuators according to VDI/VDE 3845
Attachment to double-acting actuators with Type 3710 Reversing Amplifier
Any positioner mounting position possible
Simple one-knob, menu-driven operation
Easy-to-read display in any mounting position thanks to rotatable reading direction
Variable automatic start-up
Preset parameters, only values deviating from the standard need to be adjusted
Calibrated travel sensor without gears susceptible to wear
All parameters saved in non-volatile EEPROM
Two-wire system with small electrical load of 300 ?
Tight-closing function can be activated
Automatic zero monitoring
Two standard programmable position alarms

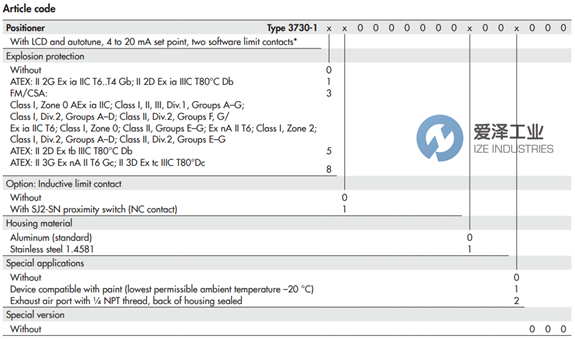

SAMSON定位器3730-1系列選型
SAMSON定位器3730-1系列其他常用型號：
SAMSON 3730-10000000000000000.04
SAMSON 3730-10000000000000000.02
SAMSON 3730-10000000000000000.03
SAMSON 3730-10000000000000000.01
