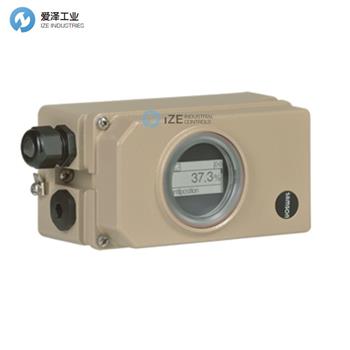

SAMSON定位器3730系列

請注意:照片可能并不是實際產品,具體請參閱標題和產品規格及所有細節描述。
產品品牌:
型號:3730-31000000400000009.03
SAMSON定位器3730-31000000400000009.03
預估貨期:
關  鍵  詞:SAMSON定位器薩姆森定位器薩姆森3730-31000000400000009.03373
相似產品:
是否有問題?聯系我們工作人員
  郵件聯系

SAMSON定位器3730-3系列技術參數

Travel


Adjustable travel for

Direct attachment to   Type 3277: 3.6 to 30 mm
  Attachment according to IEC 60534-6 (NAMUR): 3.6 to 300 mm
  Attachment according to VDI/VDE 3847 3.6 to 300 mm
  Attachment to rotary actuators: 24 to 100°

Travel range

Adjustable within the   initialized travel/angle of rotation of the valve; travel can be restricted   to 1/5 at the maximum.

Set point w


Signal range

4 to 20 mA · Two-wire   device, reverse polarity protection · Minimum span 4 mA

Static destruction   limit

40 V, internal current   limit approx. 40 mA

Minimum current

3.75 mA for   display/operation (HART? communication and configuration)
  3.90 mA for pneumatic functions

Load impedance

≤ 9.3 V (corresponds   to 465 ? at 20 mA)

Supply air


Supply air

1.4 to 7 bar (20 to   105 psi)

Hysteresis

≤0.3 %

Sensitivity

≤0.1 %

Characteristic

Linear/Equal   percentage/Reverse equal percentage/SAMSON butterfly valve

Transit time

Venting or filling   with air adjustable separately up to 240 s by software

Direction of action

Reversible

Air consumption,   steady state

Independent of supply   air approx. 65 ln/h

Air output capacity   (when ?p = 6 bar)


To fill actuator with   air

8.5 mn3/h · At Δp =   1.4 bar: 3.0 mn3/h · KVmax(20 °C) = 0.09

To vent actuator

14.0 mn3/h · At Δp =   1.4 bar: 4.5 mn3/h · KVmax(20 °C) = 0.15

Requirements


EMC

Complying with EN   61000-6-2, EN 61000-6-3, EN 61326-1 and NAMUR Recommendation NE 21

Degree of protection

IP 66/NEMA 4X

Electrical connections


Cable glands

One M20x1.5 cable   gland for 6 to 12 mm clamping range
  Second M20x1.5 threaded connection additionally available

Terminals

Screw terminals for   0.2 to 2.5 mm2 wire cross-section

Materials


Housing and cover

Die-cast aluminum EN   AC-AlSi12(Fe) (EN AC-44300) acc. to DIN EN 1706,
  chromated and powder paint coated · Special version: stainless steel 1.4408

Window

Makrolon? 2807

Cable glands

Polyamide,   nickel-plated brass, stainless steel 1.4305

Other external parts

Stainless steel:   1.4571 and 1.4301

Weight

Aluminum housing:   approx. 1.0 kg · Stainless steel housing: approx. 2.2 kg


愛澤工業(ize-industries)并不是本網站所列所有產品的授權代理商或經銷商。 本網站使用的所有產品名稱,商標,品牌等均屬于各自品牌廠家所有。 本網站在產品或圖片描述中,出現具有這些名稱,商標,品牌等信息的產品僅用于識別目的,并非旨在表明任何與持有者的從屬及授權關系。

SAMSON定位器3730-3系列介紹

帶 HART通信的智能定位器

SAM數字就緒

壓鑄鋁或不銹鋼外殼

根據IEC 60534-6、VDI/VDE 3847或SAMSON整體附件連接到線性執行器

根據VDI/VDE 3845連接到旋轉執行器

連接到帶3710型反向放大器的雙作用執行器

用于控制閥的集成EXPERTplus診斷

非接觸式位置感應

帶有NAMUR Recommendation NE 107狀態和設備消息的純文本顯示

集成診斷功能

簡單的一鍵式菜單驅動操作

由于可選擇的讀取方向,LCD 在任何安裝位置都易于讀取

可使用TROVIS-VIEW軟件通過SSP接口在計算機上進行配置

具有四種不同初始化模式的可變自動啟動

Sub(替代)初始化模式允許定位器在緊急情況下在工廠運行時啟動,而無需改變閥門位置。

所有參數保存在非易失性EEPROM中

具有465 Ω小電氣負載的兩線制系統

可調緊閉功能

連續零位監控集成溫度傳感器和運行時間計數器

自我診斷,消息作為壓縮狀態符合 NAMUR 建議 NE 107



Smart positioner with HART? communication

SAM DIGITAL READY

Die-cast aluminum or stainless steel housing

Attachment to linear actuators according to IEC 60534-6, VDI/VDE 3847, or SAMSON integral attachment

Attachment to rotary actuators according to VDI/VDE 3845

Attachment to double-acting actuators with Type 3710 Reversing Amplifier

Integrated EXPERTplus diagnostics for control valves

Non-contact position sensing

Plain-text display with NAMUR Recommendation NE 107 states and messages on the device

Integrated diagnostic functions

Simple one-knob, menu-driven operation

LCD easy to read in any mounting position thanks to selectable reading direction

Configurable with a computer over the SSP interface using the TROVIS-VIEW software

Variable, automatic start-up with four different initialization modes

Sub (substitution) initialization mode allows the positioner to be started up in case of emergency whilst the plant is running without having to change the valve position.

All parameters saved in non-volatile EEPROM

Two-wire system with a small electrical load of 465 ?

Adjustable tight-closing function

Continuous zero monitoring ntegrated temperature sensor and operating hours counter

Self-diagnostics, messages as condensed state conforming to NAMUR Recommendation NE 107

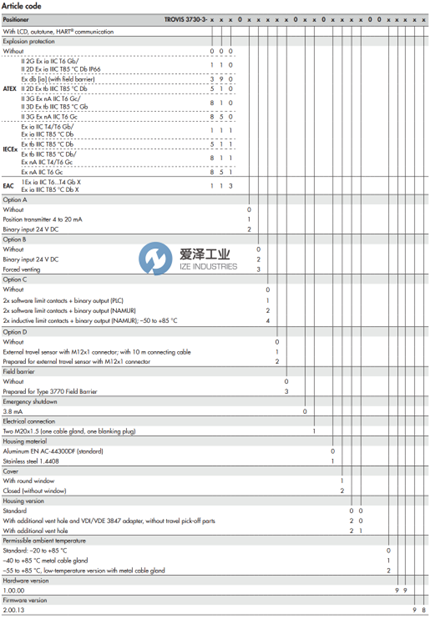

SAMSON定位器3730-3系列選型




SAMSON定位器3730-3系列其他常用型號:

SAMSON 3730-310000

SAMSON 3730-31001000400000009.04

SAMSON 3730-3100000040000009.01

SAMSON 3730-31000000400000009.03
