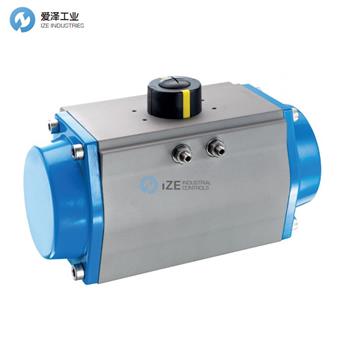

BAR執行器GS-125/090-11-F07/F10-V22-H技術參數
GS-125/090-11-F07/F10-V22-H |
GS = single-acting |
125 = Type |
090 = Pivoting angle 90° |
07= Amount of spring |
F07/F10 = ISO flange pattern |
V22=Pinion design |
H = Installation variant |
BAR執行器GS/GD系列介紹
由于有18種不同的尺寸和扭矩從2到13.040 Nm，因此可以為截止閥的每種應用提供合適的旋轉執行器。
蓋帽和外殼的高品質粉末涂層由硬涂層鋁制成，即使在惡劣的環境條件下也能使用。
電磁閥接口位于型材的高處，易于接近，從而優化了先導閥的安裝。
電磁閥連接另一側的終端位置調整方便了調整過程。
標準化接口 VDI/VDE 3845 可用于設置所有商用信號和控制設備。
位置指示器是產品的一部分，它配備了用于顯示閥門位置的可變夾子。
終端位置可以配置在0°到90°以及+ 5°到-5°之間，從而可以對閥門進行最佳調整。
每個執行器尺寸的大多數尺寸都有2種ISO法蘭模式，以確保閥門的靈活自動化。
八角小齒輪連接適應閥門的平行或?qū)沁x擇軸對準，并確保節省空間的執行器結構。
安全彈簧的組裝和拆卸簡單，設計用于平衡氣動扭矩和彈簧扭矩之間的比例。
每個控制壓力都分配給定義數量的彈簧，并有助于根據扭矩選擇執行器。
執行器外殼上的激光雕刻標記了法蘭圖案和空氣連接，以便明確分配。
序列號也是激光雕刻的；這有助于隨時跟蹤執行器的制造情況。
精確研磨的活塞齒系統可確保更平穩的運行、最佳扭矩和低磨損。
所有運動部件均采用滑動軸承，使用壽命長。
由于具有不同旋轉角度的執行器變體，執行器涵蓋了廣泛的應用。
通過為單作用和雙作用執行器使用相同的蓋子來減少庫存水平。
A suitable rotary actuator is available for each application of shut-off valves due to 18 different sizes and torques from 2 to 13.040 Nm.
The high-quality powder coating of the cap and housing made of hard-coated aluminium allows the usage even in aggressive environmental conditions.
The solenoid valve interface is located high on the profile and easily accessible which optimizes the installation of pilot valves.
The end position adjustment on the opposite side of the solenoid valve connection facilitates the adjustment process.
The standardised interface VDI/VDE 3845 can be used to set up all commercially available signal and control devices.
The position indicator is part of the product which is equipped with variable clips for displaying the valve position.
The end positions can be configured between 0° and 90° as well as from + 5° to -5°, whereby the valve can be optimally adjusted.
There are 2 ISO flange patterns available for most of the sizes per each actuator size to ensure flexible automation of valves.
The octagonal pinion connection adapts a parallel or diagonal selector shaft alignment of the valve and ensures a space-saving actuator construction.
Simple assembly and disassembly of the safety springs which are designed for a balanced ratio between pneumatic torque and spring torque.
Each control pressure is assigned to a defined number of springs and facilitates the actuator selection based on the torques.
A laser engraving on the actuator housing marks the flange patterns and air connections for a clear allocation.
The serial number is also laser engraved; this helps to trace the actuator manufacturing at any time.
Precisely milled piston tooth system ensures smoother running, optimum torque and low wear.
A long service life is achieved by using the plain bearing for all moving parts.
The actuators cover a wide range of applications thanks to the actuator variants with different swivel angles.
A reduced stock level is achieved by using identical caps for single- and double-acting actuators.
BAR執行器GS/GD系列其他常用型號：
BAR GS-075/090-07-F05/07-V14F
BAR GS-125/090-11-F07/F10-V22-H
BAR GS-032
BAR GS-040
BAR GS-052
BAR GS-063
BAR GS-075
BAR GS-083
BAR GS-092
BAR GS-105
BAR GS-125
BAR GS-140
BAR GS-160
BAR GS-190
BAR GS-210
BAR GS-240
BAR GS-270
BAR GS-300
BAR GS-350
BAR GS-400
BAR Actuator NEW + ORIGINAL+ ONE YEAR WARRANTY
