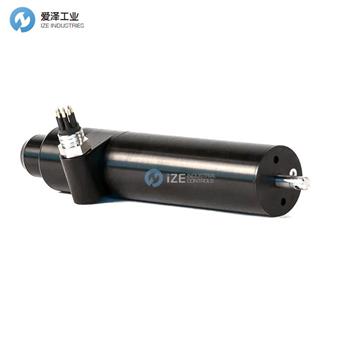

2G-ENGINEERING執行器2000L-C2000-SS-6MPD技術參數
General Specifications: | ? Output Force Over 100 lbs |
Operating Conditions: | ? Voltage 12 <-> 32 Volts DC |
Onboard Motor Driver and Servo System: | ? Configurable current limits, power and speed |
Current Draw @24V DC: | ? Idle current = 0.03A |
2G-ENGINEERING執行器2000系列介紹
The 2000 Series of linear actuators from 2G Engineering is smallest available size. It includes all the integrated features of larger 3500 and 4000 Series units such as onboard motor drivers, position sensor, and servo control system.
The model features 100 pounds of output force in tension or compression, 24 V nominal operation, and serial or analog control systems as standard.
Units are 2" in OD, have onboard compensator systems, and are rated to a depth of 10,000 ft.
Product Configurations
The 2000 Series linear actuators have multiple configuration options to choose from:
2", 4", 6", and 8" stroke units are available; units above 4" need an external compensator
Standard operating voltage range is 10-32 V
Unit material choices are 6061 aluminum, 316 stainless steel, and Grade 5 titanium
Motor windings can be customized for torque VS speed preferences
There are different options for rod ends, please contact 2G for more information
Product Applications
The 2000 Series linear actuator is well-suited to a variety of applications, including:
Wings and rudders
L .atches
Mast movement
Hydraulic cylinder replacements
2G Engineering的2000系列線性執行器是可用的最小尺寸。它包括更大的3500和4000系列裝置的所有集成功能，例如板載電機驅動器、位置傳感器和伺服控制系統。
該型號具有100磅的拉伸或壓縮輸出力、24 V標稱操作以及標準的串行或模擬控制系統。
裝置外徑為2"，具有機載補償系統，額定深度為10,000英尺。
產品配置
2000系列線性執行器有多種配置選項可供選擇：
提供2"、4"、6"和8" 沖程單元；4" 以上的單元需要外部補償器
標準工作電壓范圍為 10-32 V
單元材料選擇為 6061 鋁、316不銹鋼和5級鈦
可以根據扭矩 VS 速度偏好定制電機繞組
產品應用
2000 系列線性執行器非常適合各種應用，包括：
機翼和舵
L.atches
桅桿運動
液壓缸更換
2G-ENGINEERING執行器其他常用型號：
2G-ENGINEERING 2000L-C2000-SS-6MPD
2G-ENGINEERING Actuator NEW + ORIGINAL+ ONE YEAR WARRANTY
