BAUMULLER伺服控制器BM4466技術參數
BM4466 | |
Rated input power | 238 kVA |
Rated input current | 344 A |
Total harmonic distortion input current | 50% |
Max. input current | 455 A |
Rated DC link voltage | 540 VDC |
DC link capacitance (internal) | 13200 mF |
DC link discharging time (internal DC link capacitance) | 280 s |
Capacitance DC link to PE | 44 nF |
Waiting period between two power up processes | None |
Output voltage | 3 x 0 V to 3 x 370 V |
Output frequency at 4 kHz | 0 Hz to 450 Hz |
Max. peak current period | 60 s |
Brake resistor current, permitted | Max. 236 A |
Brake resistor external | ≥ 3.33 Ω |
Brake resistor threshold (?) | 780 V |
Brake resistor peak power | 183 kW |
Permitted continuous power brake resistor external | 130 kW |
Power loss referring to power input | 4800 W |
Power input referring to control voltage | Max. 80 W |
Power input of the device fan referring to 230 VAC | 174 W |
Current of integrated brake control | Max. 8.0 A |
Cooling air requirement power heat sink | 450 m3/h |
Cooling air requirement device internal space | 200 m3/h |

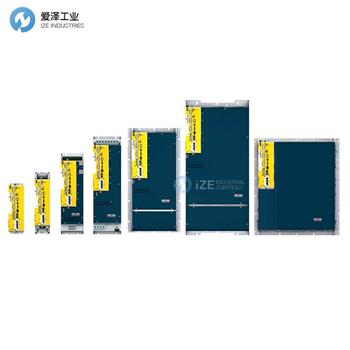

BAUMULLER伺服控制器BM4000系列介紹
b maXX 4000有多達11個用于插入模塊的插槽，因此可以針對特殊的自動化任務進行定制。 例如，特殊的插件模塊將b maXX 4000連接到所有常見的總線系統。插入式模塊b maXX-drivePLC 使驅動器智能化。
b maXX 4400提供1.1至315 kW的功率范圍。整流器、中間電路電容和逆變器集成在所有設備中。
The b maXX 4000 has up to eleven slots for plug-in modules and can therefore be customized for special automation tasks. Special plug-in modules connect the b maXX 4000, for example, to all common bus systems. The plug-in module b maXX-drivePLC makes the drive intelligent.
b maXX 4400 offers a power range from 1.1 to 315 kW. Rectifiers, intermediate circuit capacities and inverters are integrated in all devices.
BAUMULLER伺服控制器BM4000系列其他常用型號：
BAUMULLER BM4444
BAUMULLER BM4445
BAUMULLER BM4446
BAUMULLER BM4453
BAUMULLER BM4454
BAUMULLER BM4462
BAUMULLER BM4463
BAUMULLER BM4466
BAUMULLER BM4472
BAUMULLER BM4473
