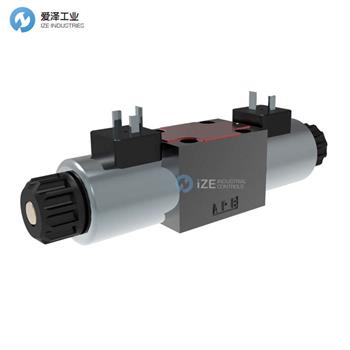

ARGO HYTOS電磁閥RPE3-06系列技術參數
Technical Data | |
Valve size | 06 (D03) |
Max. flow l/min (GPM) | 80 (21.1) |
Max. operating pressure at ports P, A, B bar (PSI) | standard 350 (5080) |
Max. operating pressure at port T bar (PSI) | 210 (3050) |
Fluid temperature range (NBR) °C (°F) | -30 ... +80 (-22 ... +176) |
Fluid temperature range (FPM) °C (°F) | -20 ... +80 (-4 ... +176) |
Ambient temperature range °C (°F) | -30 ... +50 (-22 ... +122) |
Supply voltage tolerance % | AC: ±10 |
Max. switching frequency 1/h | 15 000 |
Switching time at ν=32 mm2/s (156 SUS) | ON ms AC: 30 ... 40 DC: 30 ... 50 |
Weight kg (lbs) | - valve with 1 solenoid kg (lbs): 1.6 (3.52) |
ARGO HYTOS電磁閥RPE3-06系列介紹
直動式方向控制閥，帶底板安裝接口，符合 符合 ISO 4401、DIN 24340 (CETOP 03)
傳輸液壓功率高達 350 bar，優化設計可最大程度地減少壓降
五室外殼設計可降低液壓動力對流體粘度的依賴性
該閥可配備可互換的直流電磁閥，也可使用內置整流橋提供交流電源
提供多種電磁閥電氣端子版本
提供多種可互換線軸和手動超控裝置
根據要求提供 CSA 證書
感應式非接觸式常開和常閉閥芯位置傳感器選項
軟換檔閥芯速度控制選項
線圈通過鎖緊螺母緊固到芯管上，并可 360° 旋轉以適應可用空間
為移動領域提供增強的閥殼和鋼制部件表面保護（ISO 9227，520 小時鹽霧）
Direct acting, directional control valve with subplate mounting interface acc. to ISO 4401, DIN 24340 (CETOP 03)
High transmitted hydraulic power up to 350 bar with optimized design to minimize pressure drop
Five chamber housing design with reduced hydraulic power dependence on fluid viscosity
The valve is available with interchangeable DC solenoids, also for AC power supply using a built-in rectifier bridge
Wide range of solenoid electrical terminal versions available
Wide range of interchangeable spools and manual overrides available
CSA Certificate upon request
Inductive contactless Normally Open and Normally Closed spool position sensor option
Soft-shift spool speed control option
The coil is fastened to the core tube with a retaining nut and can be rotated by 360° to suit the available space
Enhanced surface protection for mobile sector available for the valve housing and steel parts (ISO 9227, 520 h salt spray)

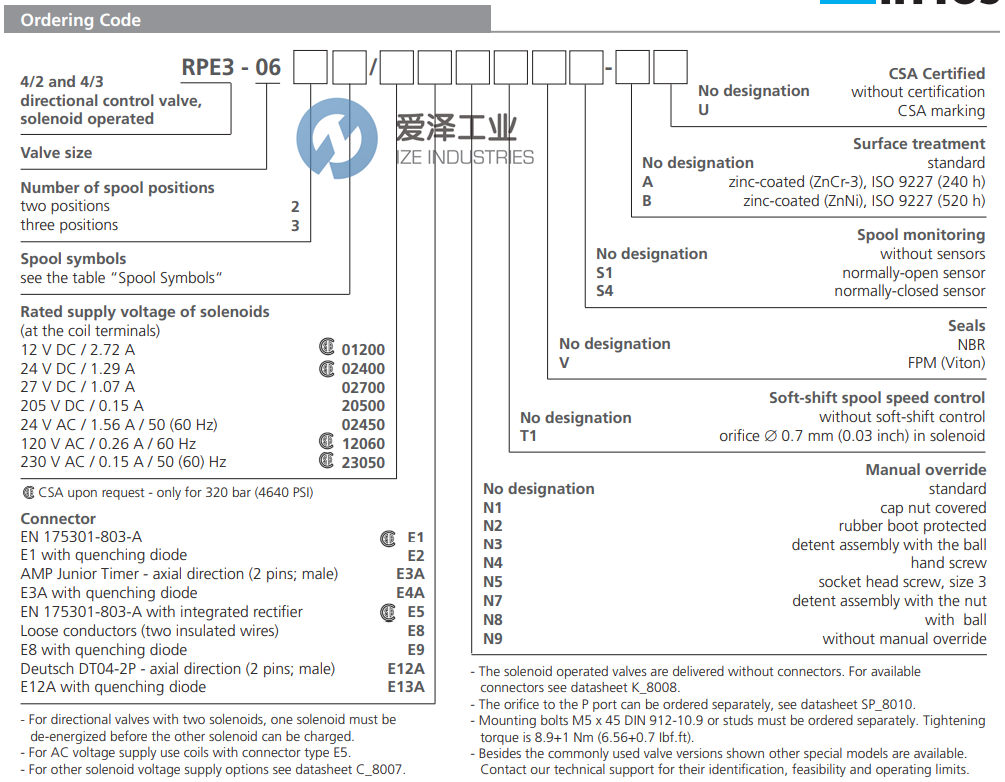

ARGO HYTOS電磁閥RPE3-06系列選型
ARGO HYTOS電磁閥RPE3-06系列其他常用型號：
ARGO HYTOS RPE3-062X11/02400E1N3-A
ARGO HYTOS RPE3-062X11/02400E1
ARGO HYTOS RPE3-063Z11/02400E12A
ARGO HYTOS RPE3-062C51
ARGO HYTOS RPE3-063C11/02400E1T1
ARGO HYTOS SOLENOID VALVE NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于ARGO HYTOS電磁閥RPE3-062C51的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for ARGO HYTOS products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
ARGO HYTOS電磁閥RPE3-06系列RPE3-062C51技術參數及選型
