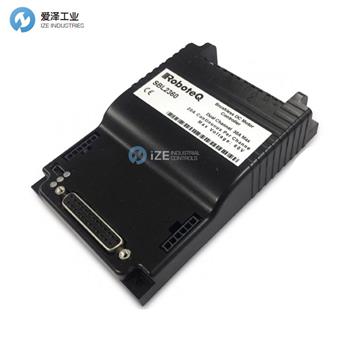

ROBOTEQ電機控制器SBL2360T技術參數
Power | |
Max Voltage | 60 |
Number of Channels | 2 |
Max Amps per Channel | 30 |
Continuous Amps per Channel | 20 |
Power Connections | Screw Terminals |
Field Oriented Control (FOC) | Yes |
Commutation | |
Trapezoidal | Yes |
Sinusoidal | Yes |
Communication | |
RS232 | Yes |
RS485 | Yes |
USB | Yes |
CANbus | Yes |
Ethernet | No |
Rotor Sensor | |
Encoder | Yes |
Hall | Yes |
Sin/Cos | Yes |
SSI | Yes |
SPI | No |
Resolver | No |
Input/Outputs | |
Max Analog Inputs | 8 |
Max Digital Inputs | 10 |
Max Digital Outputs | 4 |
Max Pulse Inputs | 8 |
Functional Safety | |
Safe Torque Off (STO) | Yes |
Mechanical | |
Cooling | Conduction plate |
Dimensions | (123mm x 83mm x 25mm) |
Weight | 215g |
ROBOTEQ電機控制器SBL23系列介紹
Roboteq的SBL23xx 是一款功能豐富的中等電流雙通道或單通道控制器，適用于無刷直流電機。有30V和60V版本，該控制器可以在多種模式中的一種模式下運行，以便感應轉子位置和順序電源電機的三個繞組，以產生平滑的連續旋轉。控制器還使用霍爾傳感器和/或編碼器信息來計算速度和測量行駛距離。電機可以在開環或閉環速度模式、位置模式或扭矩模式下運行。SBL23xx具有多個模擬、脈沖和數字 I/O，可重新映射為命令或反饋輸入、限位開關或許多其他功能。SBL23xx 接受從RC無線電、模擬操縱桿、無線調制解調器或微型計算機接收的命令。對于移動機器人應用，控制器的兩個電機通道既可以獨立操作，也可以混合操作，以移動和轉向車輛。使用CAN總線，最多可以在單對雙絞線上以高達1Mbit/s的速度聯網127個控制器。
Roboteq’s SBL23xx is a feature-packed, medium-current, dual or single channel controller for brushless DC motors.Available in 30V and 60V versions, the controller can operate in one of several modes in order to sense the rotor position and sequence power on the motors’ three windings in order to generate smooth continuous rotation. The controller also uses the Hall sensor and/or Encoder information to compute speed and measure traveled distance. The motors may be operated in open or closed loop speed mode, position mode or in torque mode. The SBL23xx features several Analog,Pulse and Digital I/Os which can be remapped as command or feedback inputs, limit switches, or many other functions.The SBL23xx accepts commands received from an RC radio,Analog Joystick, wireless modem, or microcomputer. For mobile robot applications, the controller’s two motor channels can either be operated independently or mixed to move and steer a vehicle. Using CAN bus, up to 127 controllers can be networked at up to 1Mbit/s on a single twisted pair.
ROBOTEQ電機控制器SBL23系列其他常用型號：
ROBOTEQ SBL2360
ROBOTEQ SBL2360S
ROBOTEQ SBL2330
ROBOTEQ SBL2330S
ROBOTEQ SBL1360A
ROBOTEQ SBL2360T
ROBOTEQ SBL2360TS
ROBOTEQ SBLM2360T
ROBOTEQ SBLM2360TS
