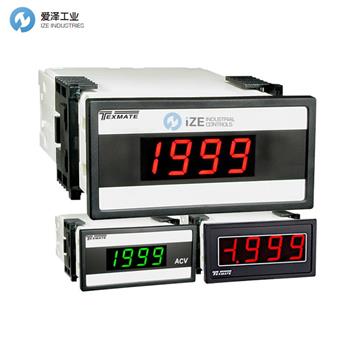

TEXMATE數字儀表DX-35-DG-PS1-IP01
DX-35 . . . . 96x48mm. Lynx, 3.5 Digit |
DG . . . Green LED, 0.56 inch high |
PS1 . . 85-265VAC/95-300VDC |
IP01 . Process Loop, 4-20mA(0-100.00) |
TEXMATE數字儀表 DX-35系列描述
Input Specs: Depends on input signal conditioner
A/D Converter: 12 bit dual slope
Accuracy: ±(0.05% of reading + 2 counts)
Temp. Coeff.: 100 ppm/°C (Typical)
Warm up time: 2 minutes
Conversion Rate: 3 conversions per second (Typical)
Display: ..3 1/2 digit 0.56" Red LED display (std),
0.56” or 0.8” Green or Super Bright
Red (optn). Range –1999 to 1999 counts.
Polarity: .Assumed positive. Displays – negative
Decimal Selection: Header under face plate, X?X?X?X
Positive Overrange: ..1 (MSD) is displayed with all other
digits blank.
Negative Overrange: 1 (MSD) and – sign are displayed with
all other digits blank.
Power Supply:AC/DC Auto sensing wide range supply
PS1 (std)： ..85-265 VAC, 50-400Hz / 95-300 VDC @1.5W
PS2： ..15-48 VAC,50-400Hz / 10-72 VDC @4.0W
Operating Temp.: 0 to 50 °C
Storage Temp:–20 °C to 70 °C.
Relative Humidity: 95% (non condensing)
Case Dimensions: 1/8 DIN, Bezel: 96x48 mm (3.78"x1.89")
Depth behind bezel: 117 mm (4.61")
Plus 11.8 mm (0.47") for Right-angled
connector or plus 20 mm (0.79") for
Straight-thru connector.
Weight: 8 oz., 11 oz when packed.

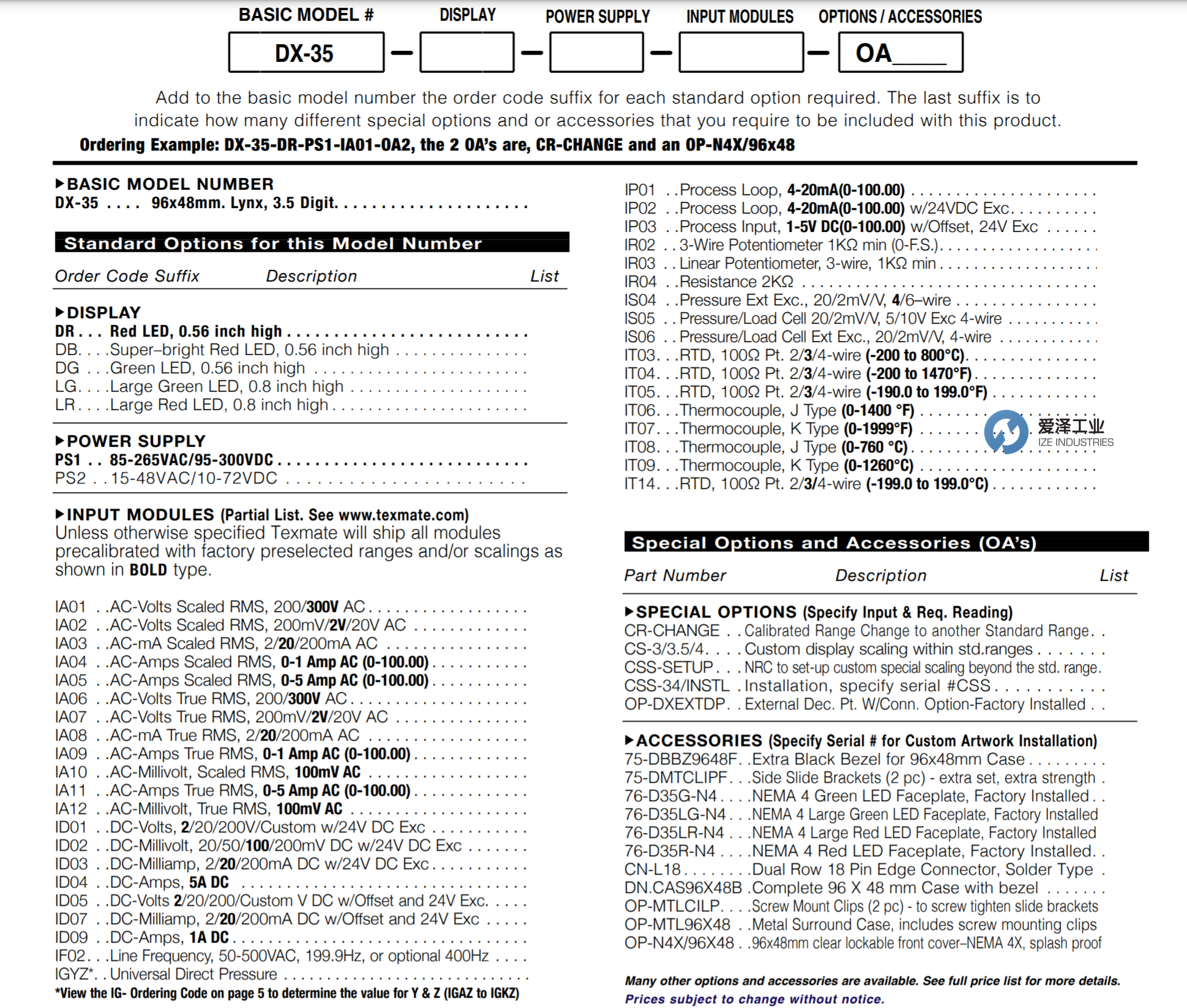

產品選型
TEXMATE數字儀表DX-35系列其他常見型號：
TEXMATE DX-35-DG-PS1-IP01
TEXMATE DX-35-DR-PS1-IA01-OA2
TEXMATE DX-35-DR-PS1-IA01
TEXMATE Digital meter NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于TEXMATE數字儀表DX-35-DG-PS1-IP01的疑問，請隨時與我們電聯，（021-3100 6702），我們將盡全力解決您的問題。
If you have any question for TEXMATE products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: jjxdch.cn.
TEXMATE數字儀表DX-35系列 DX-35-DG-PS1-IP01選型及介紹
