TESCOM閥VAC6PVVA9B9技術參數
Part Number | VAC6PVVA9B9 |
SERIES | VA |
TYPE | C – Normally Closed |
BODY AND TRIM MATERIAL | 6 – 316 Stainless Steel |
SEAT | PV – |
OPTIONS | V – Solenoid Valve (24 volt) |
PORT LOCATION 3 SIZE AND TYPE | A – 1/4" NPTF Inlet |
PORT LOCATION 6 SIZE AND TYPE | 9 – None |
PORT LOCATION 9 SIZE AND TYPE | B – 1/4" NPTF Outlet |
PORT LOCATION 12 SIZE AND TYPE | 9 – None |
TESCOM閥VAC6PVVA9B9產品介紹
VA系列是氣動閥，具有常開/常閉功能，工作壓力為 6000、10，000 和 15，000 psig / 414、690 和 1034 bar，循環壽命非常高，可選集成電磁閥。適用于液體和氣體應用。非常適合用于高壓循環測試、氣動和液壓控制面板以及研發實驗室。

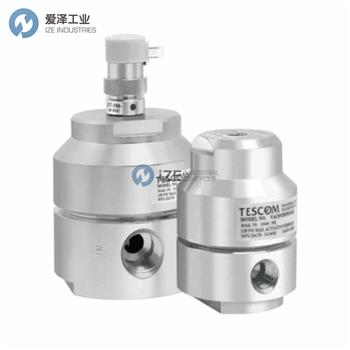

VA Series are air operated valves offering normally open/normally closed capabilities, operating pressures of 6000, 10,000, and 15,000 psig / 414, 690, and 1034 bar, very high cycle life and optional integrated solenoid valve. Suitable for liquid and gas applications. Ideal for use in high pressure cycling testing, pneumatic and hydraulic control panels and R & D labs.

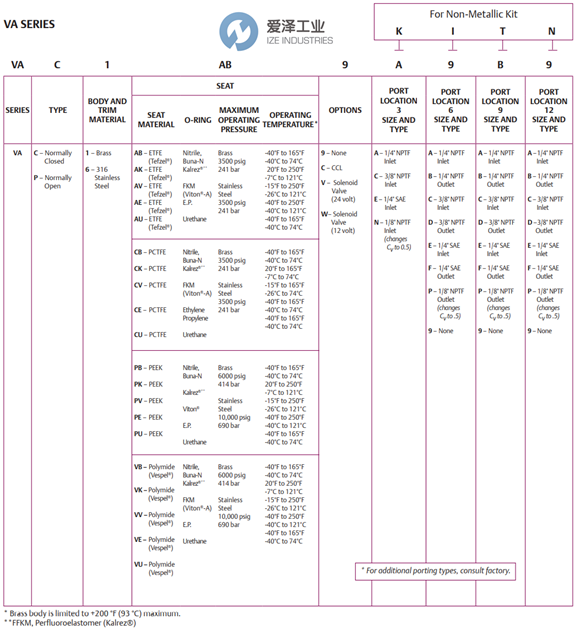

TESCOM閥VA系列選型
TESCOM閥VA系列其他常用型號：
TESCOM VAC6ABVA9B9
TESCOM VAC6AKVA9B9
TESCOM VAC6AVVA9B9
TESCOM VAC6AEVA9B9
TESCOM VAC6AUVA9B9
TESCOM VAC6CBVA9B9
TESCOM VAC6CKVA9B9
TESCOM VAC6CEVA9B9
TESCOM VAC6PKVA9B9
TESCOM VAC6PVVA9B9
TESCOM Valve NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于TESCOM閥VAC6PVVA9B9的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for TESCOM products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
TESCOM閥VA系列VAC6PVVA9B9技術參數及選型
