NUMATICS電磁閥L2系列技術參數
Technical Data | ||
Valve Data | English | Metric |
Cv | 1/4 = 1.7 3/8 = 1.7 | 1/4 = 1.7 3/8 = 1.7 |
Flow Capacity | 79 SCFM | 1674 NI/m |
Main Valve Operating Pressure Range | 28”Hg Vacuum to 150 PSIG | Vacuum to 10 bar |
Pilot Pressure Range: | 14.5 to 150 PSIG | 1 to 10 bar |
Temperature range | -10°F to +115°F | -23°C to +46°C |
Temperature Range: Air | -10°F to +150°F | -23°C to +66°C |
NUMATICS電磁閥L2系列介紹
L2閥門系列以緊湊的設計提供速度和高流量。其纖薄的 1 英寸機身寬度非常適合在線安裝。這些閥門提供行業領先的生命周期性能，并在惡劣環境中提供高可靠性。L2 系列適用于高循環機器操作，例如汽車、裝瓶、生命科學、印刷車間和輪胎制造應用。
通過速度控制優化機器循環率
可提供電磁先導、氣動先導或手柄驅動，適用于廣泛的應用
可安裝在 2 至 12 個工位的一體式擠壓歧管上，作為帶有公共排氣的公共供氣或帶有單獨排氣的公共供氣
DIN 插入式電磁閥和帶指示燈的插頭連接器是標準配置
可提供整體速度控制

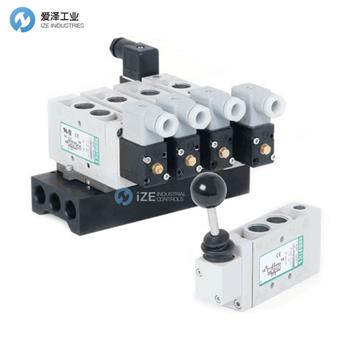

The Numatics Series L2 valve line offers speed and high flow capacity in a compact design. Its slim, 1-inch body width is ideal for in-line mounting. The valves provide industry-leading life cycle performance and deliver high reliability in harsh environments. The L2 Series is suitable for high cycle machine operations such as automotive, bottling, life science, press room, and tire manufacturing applications.
Optimizes machine cycle rate via speed controls
Available with solenoid pilot, air pilot, or hand lever actuation for a wide range of applications
Can be mounted on one-piece extruded manifolds from 2 to 12 stations, either as common supply with common exhaust or common supply with individual exhaust
DIN plug-in solenoid and plug connector with indicator light are standard
Integral speed control is available

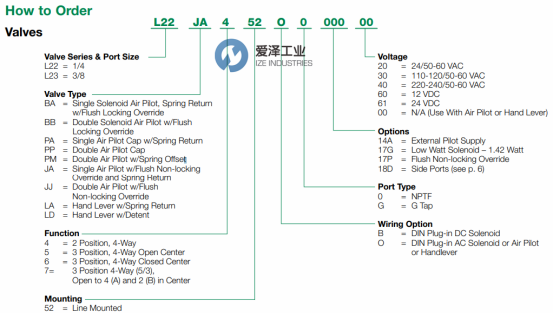

NUMATICS電磁閥L2系列選型
NUMATICS電磁閥L2系列其他常用型號：
NUMATICS L22JA452O000000
NUMATICS L22BA4004P00061
NUMATICS L22PP452O047N00
NUMATICS L22BA452BG00061
NUMATICS L22LA552O000000
NUMATICS L22BA452O000030
NUMATICS The electromagnetic valve NEW + ORIGINAL+ ONE YEAR WARRANTY
