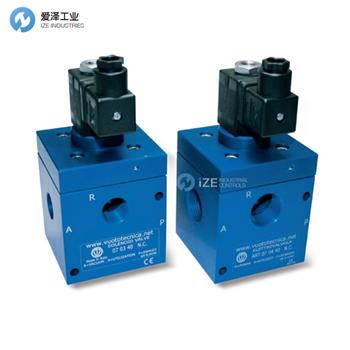

VUOTOTECNICA電磁閥070440NC技術規格
Item | 07 04 40 NC |
Max flow rate | 40 m3/h |
Level of vacuum | min 850 abs. mbar |
Reaction time | energ. 30 msec |
Mouth | 20 ? |
Cross-section of passage | 314 mm2 |
Weight | 1.50 Kg |
VUOTOTECNICA電磁閥介紹
它們通常是標準關閉的，但可以根據要求提供常開。
這些電磁閥的工作原理基于真空泵或發生器之間的壓差與吸入空氣的壓力。
由于其工作原理，不建議將它們用于具有粗真空水平（低于 850 絕對毫巴，等于 15 % 真空）的設備。
沒有彈簧、摩擦和內部動態應力有利于高響應速度并保證持久運行。
標準電線圈采用合成樹脂完全塑化，結構緊密，絕緣等級 F（最高 155°C）符合 VDE 標準，具有符合 EN 175301-803（前 DIN 43650）的 6.3 毫米三端子電氣連接。 防護等級IP 54； 已插入連接器的 IP 65。
They are normally closed as standard, but they can be supplied normally open upon request.
The operating principle of these solenoid valves is based on the pressure differential between the vacuum pump or generator and the pressure of the suctioned air.
Due to their operating principle, they are not recommended on plants with rough vacuum levels (below 850 absolute mbar, equal to 15 % vacuum).
The lack of springs, frictions and internal dynamic stresses favours a high response speed and guarantees long lasting operation.
The standard electric coil is fully plasticised with synthetic resin, tight execution, insulation class F (up to 155°C) compliant with VDE standards, with 6.3 mm three-terminal electrical connections in compliance with EN 175301-803 (ex DIN 43650). Protection degree IP 54; IP 65 with connector inserted.
VUOTOTECNICA電磁閥其他常用型號
VUOTOTECNICA 070340NC
VUOTOTECNICA 070340NO
VUOTOTECNICA 070440NC
VUOTOTECNICA 070440NO
VUOTOTECNICA 070540NC
VUOTOTECNICA 070540NO
VUOTOTECNICA 070640NC
VUOTOTECNICA 070640NO
