CCS壓力開關6900P系列技術參數
Specifications | |
Additional information | |
Environmental Approvals | IP65, IP66, NEMA 4, NEMA 4X, NEMA 7, NEMA 9, NEMA 13, NACE, RoHS |
Industry | Industrial |
Instrumentation | Pressure Switch |
Environment | Non-Hazardous |
Certification Agency Approvals | CSA, CE, CRN, CCC |
Operating Temperature Range | -40° to 186 °F |
Process Connection Fitting Size | Female 1/4" NPT, Female 7/16" UNF |
Process Connection Material | Aluminum |
Housing Enclosure | Aluminum |
Electrical Connection | Male 1/2" NPT |
Electrical Switch Type | SPDT |
Voltage Electrical Rating VAC | 0 to 250 VAC |
Amperes Electrical Rating | 0.5 to 11 A |
Junction box app | 141-18, 141-19, 141-20, 141-28 |
Fixed or Adjustable Set Point | Adjustable |
Presetting | Factory Set, Not Factory Set |
Tagging | Mylar, Stainless Steel |
Accessories | Manifold, Mounting Kit |
Increasing Pressure Range | 15 to 200 PSIG, 150 to 1600 PSIG, 500 to 3200 PSIG, 2000 to 6500 PSIG, 5000 to 11000 PSIG, 10000 to 16000 PSIG |
Decreasing Pressure Range | 1500 to 6000 PSIG, 330 to 3030 PSIG, 40 to 1490 PSIG, 4850 to 9500 PSIG, 5 to 190 PSIG, 7500 to 13500 PSIG |
Pressure Type | Gage |
Media | Oil Based |
Increasing Pressure Ranges | 3 – 180 PSI, 180.01 – 3400 PSI, 3400.01 – 16000 PSI |
Decreasing Pressure Ranges | 1.16 – 173 PSI, 173.01 – 3180 PSI, 3120.01 – 13500 PSI, 3180.01 – 13500 PSI |
Maximum System Pressure | 2000, 3000, 5000, 10000, 14000, 17000 |
Maximum Proof Pressure | 3000, 5000, 7500, 13000, 20000, 25000 |
Process Connection Seal | O-Ring Sealed Piston |
O-ring | Buna N |

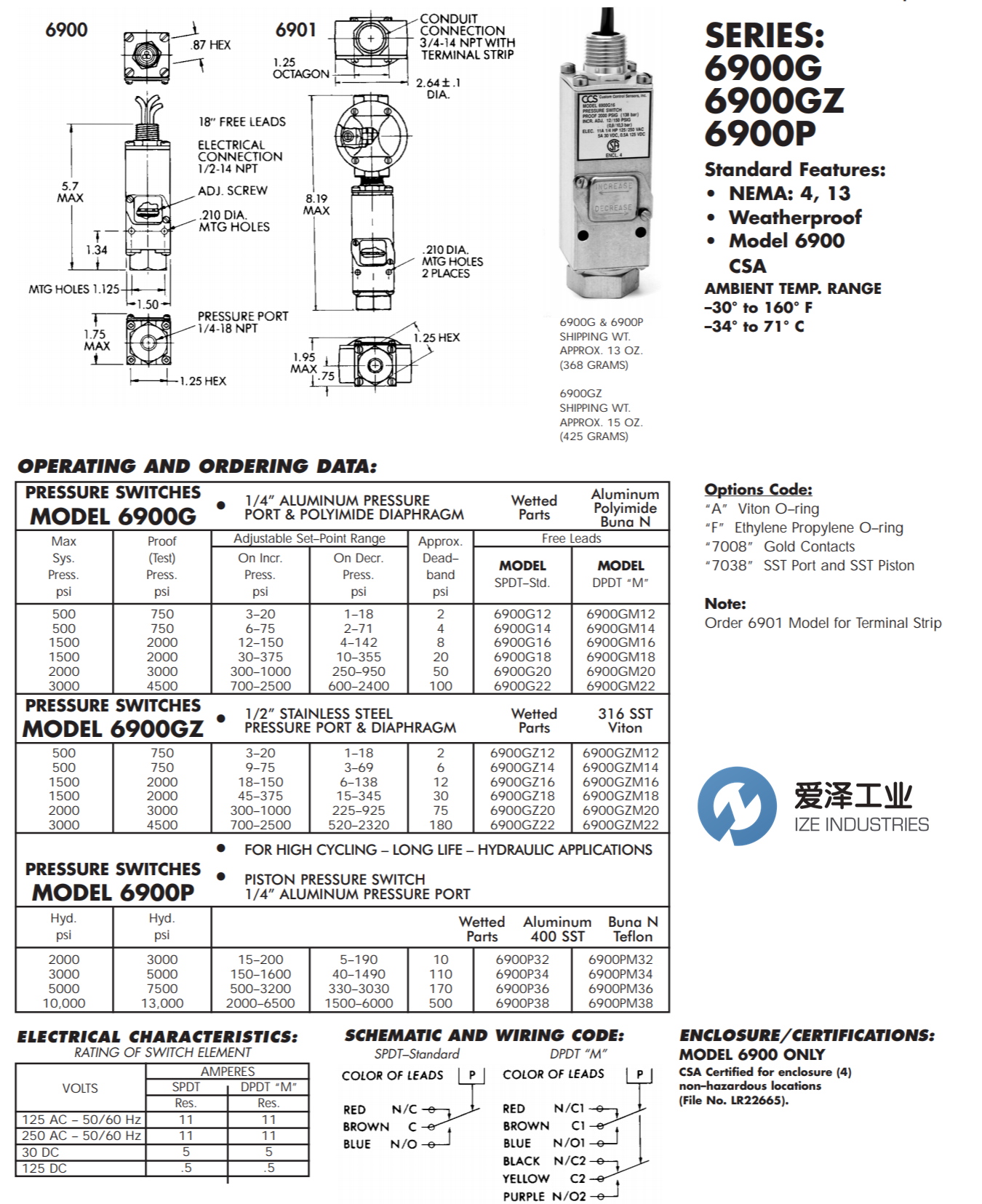

CCS壓力開關6900P系列介紹及選型圖

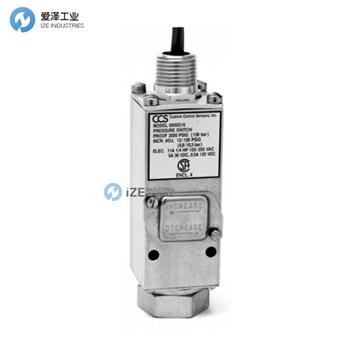

The general purpose 6900P Series is the most popular, all-around, all-aluminum gage pressure switch with a piston based port for fluid applications. This hydraulic pressure switch is designed with high vibration and shock resistance utilizing Dual Snap? disc spring technology ensuring high accuracy and repeatability. It comes with high over-pressure capabilities and still relatively compact in size to conveniently mount on panels. NEMA 4X and IP66 rating is optimum for wet conditions. It meets the demand for all applications commercial, industrial and otherwise.
通用 6900P系列是最流行的全鋁表壓開關，帶有用于流體應用的活塞端口。該液壓開關采用 Dual Snap碟形彈簧技術，具有高抗振性和抗沖擊性，可確保高精度和可重復性。它具有很高的過壓能力，而且尺寸仍然相對緊湊，可以方便地安裝在面板上。NEMA 4X 和 IP66 等級最適合潮濕條件。它滿足所有商業、工業和其他應用的需求。
CCS壓力開關6900P系列其他常用型號：
CCS 6900P32
CCS 6900P34
CCS 6900P36
CCS 6900P38
CCS 6900PM32
CCS 6900PM34
CCS 6900PM36
CCS 6900PM38
CCS Pressure Switch NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于CCS壓力開關6900P34的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for CCS products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: jjxdch.cn.
CCS壓力開關6900P系列6900P34技術參數
