TESCOM高壓調壓閥44-1100系列技術參數
OPERATING PARAMETERS | |
Maximum Inlet Pressure | 10,000 psig / 690 bar |
Outlet Pressure Ranges | 50-6000 psig 3.4-414 bar |
Design Proof Pressure | 150% maximum rated inlet |
Leakage | Bubble-tight |
Operating Temperature | -30°F to 140°F / -34°C to 60°C |
Flow Capacity | Cv = 0.06 |
Maximum Operating Torque | 35 in-lbs / 3.95 N?m |
MEDIA CONTACT MATERIALS | |
Body | 303 Stainless Steel |
Filter | 15 micron (nominal) - 316 Stainless Steel |
Main Valve Seat | Polyimide (Vespel?) |
Vent Valve Seat | PCTFE |
O-Rings | Nitrile, Buna-N |
Back-up Rings | PTFE |
Remaining Parts | 300 Series Stainless Steel |
OTHER | |
Cleaning | CGA 4.1 and ASTM G93 |
Weight | 4.8 lbs / 2.2 kg |
TESCOM高壓調壓閥44-1100系列介紹
TESCOM 44-1100系列高壓、低流量排氣調節器采用活塞感應設計，控制壓力為0 - 6,000 psig / 0- 414 bar，低扭矩設置和大把手。提供多種壓力范圍套件。
? 可拆卸的閥門組件模塊便于維修
? 通過廣泛的壓力設置提供出色的靈敏度
? 活塞式傳感器提供額外的安全性和可靠性
? 不平衡閥桿有助于正向關閉
? 入口和出口壓力表端口是標準的
? 通風是標準的
? 在所有壓力范圍內，調節器排氣至零 psig / bar

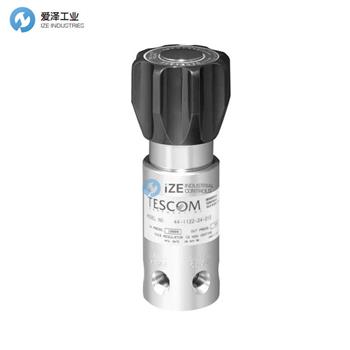

TESCOM 44-1100 Series high pressure, low flow venting regulator offers a piston sensed design, control pressures of 0 - 6,000 psig / 0- 414 bar, a low torque setting and large handknob. Multiple pressure range kits are available.
? Removable valve assembly module permits easy repair
? Excellent sensitivity through a wide range of pressure settings
? Piston style sensor offers extra safety and reliability
? Unbalanced stem assists positive shutoff
? Inlet and outlet gauge ports are standard
? Venting is standard
? Regulator vents to zero psig / bar in all pressure ranges

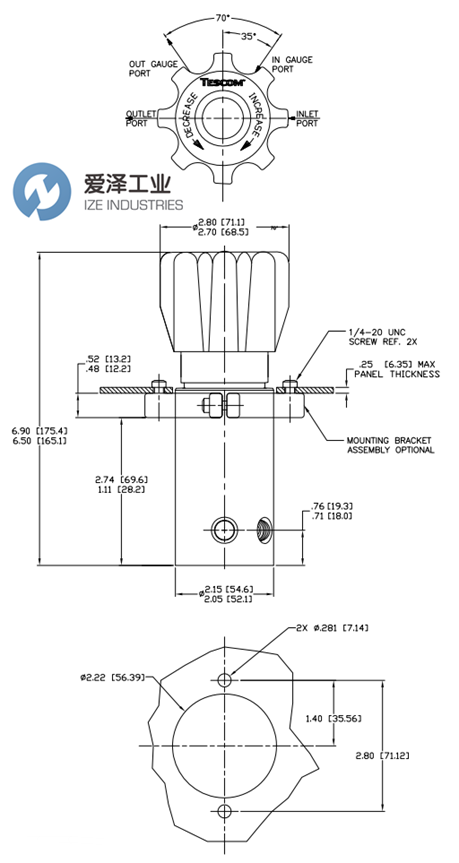

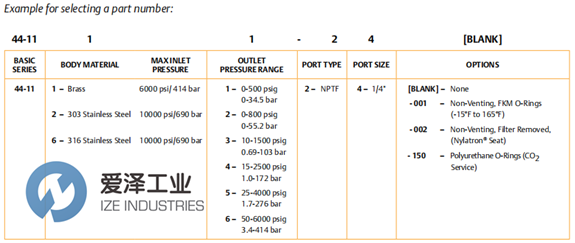

TESCOM高壓調壓閥44-1100系列技術尺寸及選型
TESCOM高壓調壓閥44-1100系列其他常用型號：
TESCOM 44-1111-24
TESCOM 44-1112-24
TESCOM 44-1113-24
TESCOM 44-1114-24
TESCOM 44-1115-24
TESCOM 44-1116-24
TESCOM 44-1124-24
TESCOM 44-1125-24
TESCOM 44-1126-24
TESCOM 44-1165-24
TESCOM 44-1165-24-001
