ITRON調節閥133/233系列技術參數
Technical Specifi cations | |
Maximum inlet pressure | 8 bar |
Outlet pressure | 10 mbar - 0.55 bar |
Accuracy & lock-up pressure | Up to AC 5 / up to SG 10 |
Operating temperature | Gas: -20°C to +60°C |
Ambient temperature | -30°C to +60°C (body material) |
Acceptable gases | Natural gas, propane, butane, air, nitrogen and all non-corrosive gases. |
Safety devices | Optional built-in safety shut-off valve: |
Options | Safety diaphragm - Safety relief valve |
Connections | |
Sizes | DN 25, DN 40 and DN 50 |
Flanges | PN16 |
Thread | Rp 1 - EN 10226-1 |
Materials | |
Body | EN-GJS-400-15 DIN EN 1563 |
Actuator | Cast aluminium GD-Al Si 12, DIN 1725 |
SSV actuator | Brass |
Internal parts | Brass/Steel, zinc protected |
Seals | NBR rubber/Viton |
Diaphragm | NBR rubber/NBR rubber, reinforced fabric |

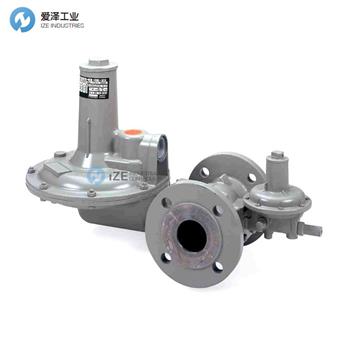

ITRON調節閥133/233系列介紹
133 和 233 調節器專為工業和供熱廠等輕型商業用途以及所有需要精確壓力控制、易于調節和快速響應時間的安裝而設計，例如用于燃燒器、工業烤箱、鍋爐、 等等。
133 和 233 調節器是帶有內置安全切斷裝置的直接作用式彈簧加載調節器。
多種孔口尺寸選擇可實現不同流量和入口壓力的完美匹配。
當流量變化時，杠桿系統確保精確的出口壓力和快速響應。
133 調節器和 233 調節器的法蘭型配有內置過濾器（過濾等級 0.5 毫米）
The 133 and 233 regulators are designed for light commercial and commercial uses such as industries and heating plants, as well as for all installations where accurate pressure control, easy adjustment and fast response times are required, such as for burners, industrial ovens, boilers, etc.
The 133 and 233 regulators are directacting, spring loaded regulators with a built-in safety shut-off device.
A large choice of orifi ce sizes enables perfect matching of the different fl ow rates and inlet pressures.
The lever system ensures exact outlet pressure and fast response when the fl ow rate varies.
The 133 regulator and the fl anged versions of the 233 regulators are equipped with a built-in fi lter (filtration grade 0.5 mm)

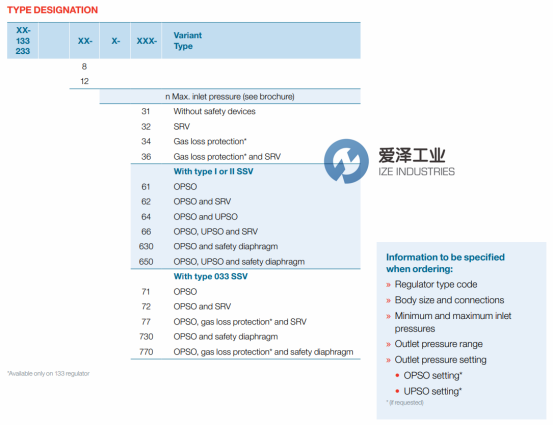

ITRON調節閥133/233系列選型
ITRON調節閥133/233系列其他常用型號：
ITRON 133-5-72
ITRON 133-HP
ITRON 233-12
ITRON 233-8
ITRON Control valve NEW + ORIGINAL+ ONE YEAR WARRANTY
