DANFOSS壓力變送器DST140系列技術參數
Performance | |
Accuracy @ 20 °C | ≤ ±0.5% FS |
Total error band | 0 - 100 oC: 2% |
Response time | < 2 ms |
Overload pressure | 4 × FS |
Burst pressure | 5 × FS |
Durability, P: 10-90% FS | >10 mil. cycles |
Electricl speci?cations | |
Nom. output signal (short-circuit protected) | 4 ? 20 mA |
Supply voltage [UB], polarity protected | 8 - 28 V |
Supply voltage dependency | ≤ ±0.1% FS/10 V |
Load [RL] (load connected to 0 V) | RL ≤ (UB-8V)/0.022 A |
Environmental conditions | |
Media temperature range | -20 –110 °C - (0.34*ambient) |
Ambient temperature range | -40 – 85 °C |
Storage temperature range | ?50 –150 °C |
EMC - Emission | EN 61000-6-3 |
EMC Immunity up to 6 GHz | EN 61000-6-2 |
Insulation resistance | > 100 MΩ at 500 V |
Vibration resistance | Random 10 grms, 5 Hz - 2 kHz IEC 60068-2-64 |
Shock resistance | Shock 500 g / 1 ms IEC 60068 - 2 - 27 |
Enclosure with mating connector | IP67 |
Mechanical characteristics | |
Wetted parts | AISI 304L |
Weight (depending on pressure connection and electrical connection) | < 100 g |
DANFOSS壓力變送器DST140系列品介紹

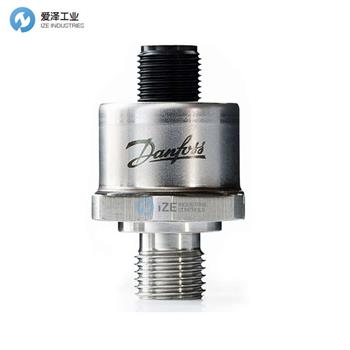

Danfoss傳感器技術 (DST) P140 設計用于增壓泵和空氣壓縮機等工業應用。 DST P140 源自 30 多年的 MEMS 技術經驗，采用緊湊耐用的不銹鋼封裝，高性能。 DST P140 運行基于 ARM 的強大微控制器，提供具有競爭力的診斷功能和性能功能。
特征
? 密封介質接口（全不銹鋼，全焊接）
? 適用于 OEM 應用的緊湊且具有成本效益的設計
? 卓越的抗沖擊和抗振性
? 高過載和爆破壓力
? 適用于惡劣電氣環境的強大電子平臺
The Danfoss Sensor Technology (DST) P140 is designed for use in industrial applications like Booster Pumps and Air Compressors. Drawn from over 30 years of experience with MEMS technology, the DST P140 others outstanding performance in a compact and durable stainless-steel package. Running a powerful ARM-based microcontroller, the DST P140 others diagnostic features and performance features at a competitive level.
Features
? Hermetically sealed media interface (all stainless steel, fully welded)
? Compact and cost-effective design for OEM applications
? Superior shock and vibration resistance
? High overload and burst pressure
? Robust electronics platform for harsh electrical environments

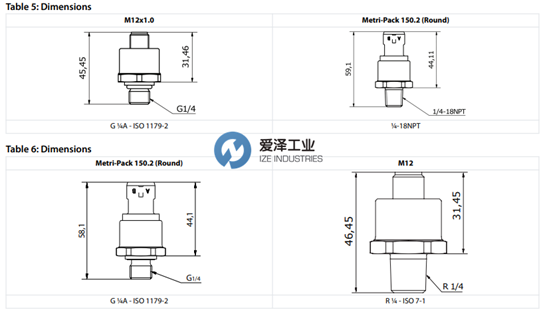

DANFOSS壓力變送器DST140系列技術尺寸
DANFOSS壓力變送器DST140系列其他常用型號：
DANFOSS DST140 075G1054
DANFOSS DST140 075G4035
DANFOSS DST140 075G4027
DANFOSS DST140 075G4029
DANFOSS DST140 075G4031
DANFOSS DST140 075G4033
DANFOSS DST140 075G4064
DANFOSS DST140 075G4052
DANFOSS DST140 075G4053
DANFOSS DST140 075G4054
DANFOSS DST140 075G4055
DANFOSS DST140 075G4056
DANFOSS DST140 075G4026
DANFOSS DST140 075G4028
DANFOSS DST140 075G4030
DANFOSS DST140 075G4032
DANFOSS DST140 075G4073
DANFOSS DST140 075G4074
