RNA控制單元SCU1000技術參數
Power supply (can be changed internally): | 230 Volt AC, 50/60 Hz, +10 -10% oder |
Output voltage: | 40...208 Volt (eff.) adjustable, (230V Netz) |
Load current: | max. 6A (eff.) |
Fuses (in power input): | 2 miniature fuses, 5 x 20mm, M6.3A/250VAC |
Operating modes: | 1. asymmetric half-wave mode |
Mode change: | Coding jumper in load connector |
Enabling of functions: | internal/external, adjustable via parameters |
Enabling input, external contact: | floating, normally-open contact, approx. 24VDC, <10mA |
Enabling input, external 24V signal: | input protected against reverse polarity, voltage level |
Status outputs: | 24VDC, max. 30mA |
Power loss: | max. 18W |
Soft start / stop: | adjustable via parameters, default setting approx. 0.1 s |
Degree of protection: | IP 54 |
Radio interference suppression: | acc. to EMC directive |
Dimensions: | 130 x 203 x 135 (width x height x depth) |
Ambient temperature: | 0°C to 40°C |
Weight: | approx. 1,6kg |
Housing material: | aluminium/plastic |
Installation position: | vertical |

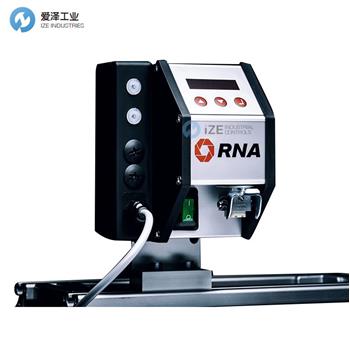

RNA控制單元SCU1000產品介紹
緊湊型控制單元為所有RNA振動驅動器提供高達6安培的負載電流，設計用于直接在振動驅動器上獨立安裝。進料速率針對 RNA 驅動器進行了優化，并且可以通過 LED 顯示屏在設置范圍內進行精確調整。即使電源電壓出現波動，新型閉環控制功能也能保持進給率幾乎恒定。控制器前面板上發光的翹板開關將所有極與電源斷開。對于頻繁開關應用或使用更高級別的控制系統操作時，通過浮動觸點和16-30 VDC電壓信號提供空載關閉。此外，控制系統的當前運行狀態可以通過“READY”或“ACTIVE”信號進行監控?？刂破骺梢栽?230V 和110V電源下運行，這些電源可以通過內部開關進行選擇。所有其他控制器設置均通過 LED顯示屏進行。
The compact control unit supplies all RNA vibrating drives with load currents up to 6 amps and is designed for stand-alone installation directly at the vibrating drive. Feed rates are optimized for RNA drives and can be precisely adjusted within the setting range via the LED display. A novel closed-loop control function keeps the feed rate almost constant even if fluctuations in the mains voltage occur. The illuminated rocker switch on the controller front panel disconnects all poles from power supply. For frequent switching applications or when operating with a higher-level control system provision is made for no-load switching-off both by floating contact and by a 16-30 VDC voltage signal. Moreover, the current operating status of the control system can be monitored by means of a "READY" or "ACTIVE" signal. The controller can operate on both 230V and 110V supplies which can be selected on an internal switch. All other controller settings are made via the LED display.
RNA控制單元其他常用型號：
RNA SCU1000
RNA SCU2000
RNA ESK2.000
RNA ESK2.001
RNA ESK2.002
RNA ESR2.000
RNA ESR2.500
RNA ESR2.800
RNA ESR3000
RNA ESM906
RNA ESM910
RNA ESM3000
RNA SCP400
RNA EBC3000
RNA EBF05
RNA CONTROL UNITS NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于RNA控制單元SCU1000的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for RNA products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: jjxdch.cn.
