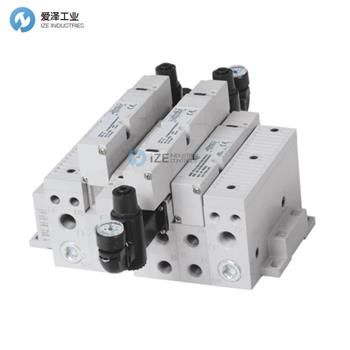

ASCO電磁閥12HBA4Z1ML11B61技術規格

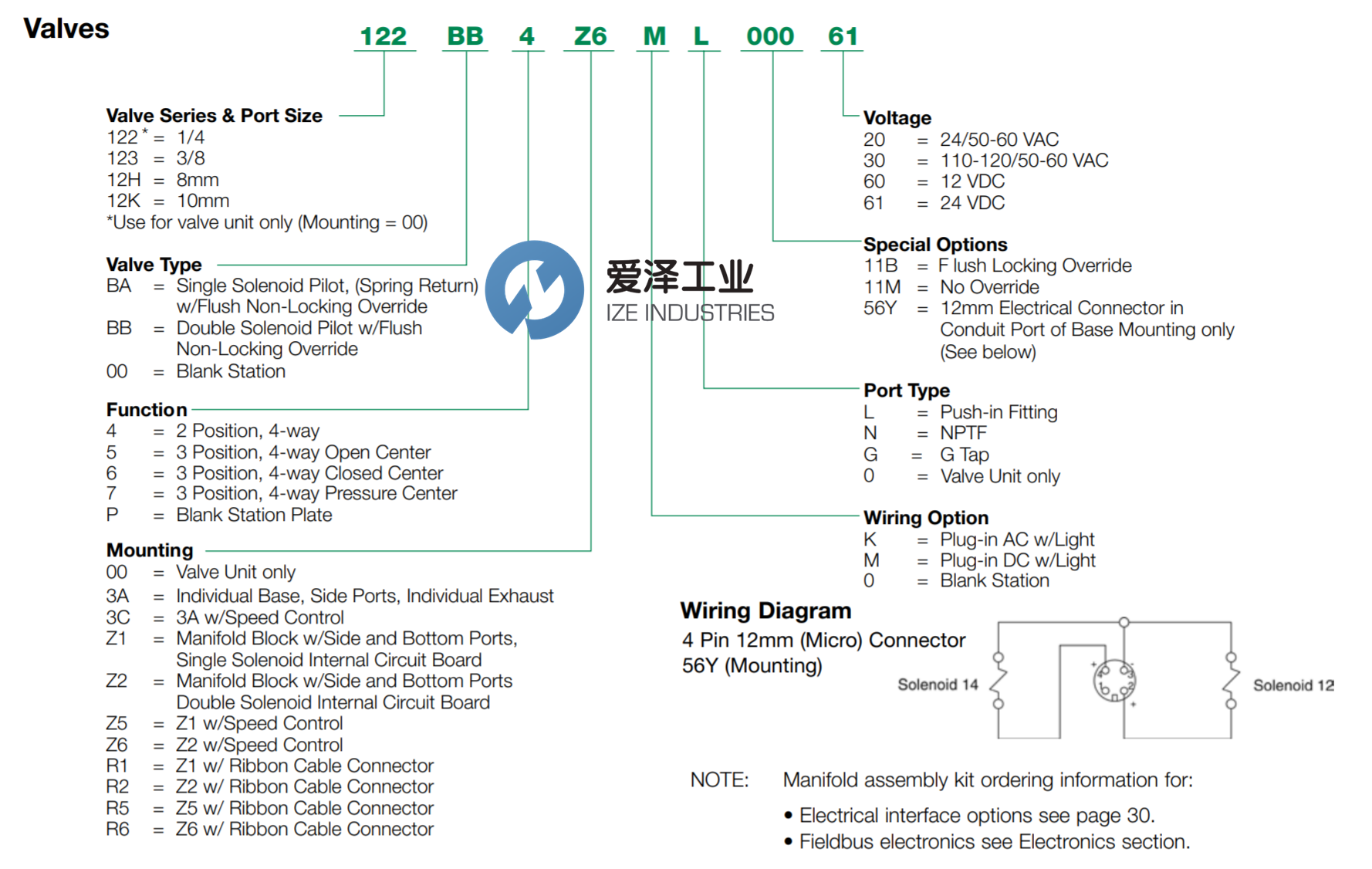

12HBA4Z1ML11B61 |
12H = 8mm |
BA = Single Solenoid Pilot, (Spring Return) w/Flush Non-Locking Override |
4 = 2 Position, 4-way |
Z1 = Manifold Block w/Side and Bottom Ports, Single Solenoid Internal Circuit Board |
M = Plug-in DC w/Light |
L = Push-in Fitting |
11B = F lush Locking Override |
61 = 24 VDC |
ASCO電磁閥2012系列介紹及選型
5 Ported, 2 and 3 position, 4-way, Spool & Sleeve Cv: 1.2
?Solenoid air pilot actuated
?Low wattage plug-in – 2.5 watt for DC application
?DC solenoids polarity insensitive with surge suppression Plug together circuit boards eliminate internal wiring
?Integral recessed gaskets
?Interchangeable push-in fittings to accommodate various tube sizes
?Simple conversion from internal to external pilot
?Modular plug-together Fieldbus electronics
?Designed to meet the requirement of NEMA 4 / IP65
5 端口，2 和 3 位置，4 路，線軸和套筒 Cv：1.2
?電磁閥啟動
?低功率插件 – 2.5 瓦直流應用
?直流螺線管極性不敏感，具有浪涌抑制功能 將電路板連接在一起，無需內部布線
?整體嵌入式墊圈
?可互換的推入式接頭以適應各種管尺寸
?從內部飛行員到外部飛行員的簡單轉換
?模塊化即插即用現場總線電子設備
?旨在滿足 NEMA 4 / IP65 的要求
ASCO電磁閥2012系列其他常用型號：
ASCO 12HBA4Z1KL11B20
ASCO 12HBA4Z1ML00061
ASCO 12HBA4Z1ML11B61
ASCO 12HBA4Z2ML11B61
ASCO 12HBA4R1ML00061
ASCO 12HBA4R5ML11B61
ASCO 12HBA4R6ML11B61
ASCO 12HBA4R2KL11B30
ASCO 12HBA4Z6ML00061
ASCO 12HBA4Z1KL00020
ASCO 12HBA4Z2KL11B30
ASCO 12HBA4Z2ML00061
ASCO 12HBA4R1ML11B61
ASCO 12HBA4R2ML11B61
ASCO 12HBA4R2ML00061
ASCO 12HBA4Z5ML00061
ASCO 12HBA4Z5ML11B61
ASCO 12HBA4Z6ML11B61
ASCO valve NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于ASCO電磁閥12HBA4Z1ML11B61的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for ASCO products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: jjxdch.cn.
ASCO電磁閥2012系列12HBA4Z1ML11B61產品參數
