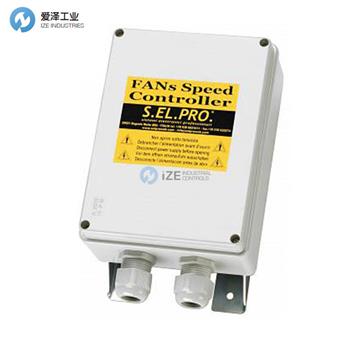

SELPRO控制器ESY100系列技術參數
AC Power Supply | 110Vac ±10% |
Nominal Current (RMS) at 50°C | 8A |
Frequency | 50Hz |
Motor Connection | 1 |
Control Technology | analog |
Motor control type | phase cutting |
Case IP Grade | IP55 |
Conforms to the following standards | Standard EN 61800-3 (directive 2004/108 CE) |
Display and settings | rotary switches with 13 stable positions signaling leds |
Control Function | proportional master (P) slave |
Number of working parameter set | 1 |
Control Parameters | set-point |
Special Features | direct / reverse mode selection |
commands analog input | 4 |
Analog input type | 4-20mA |
Transducer type | 4...20mA |
ON/OFF inputs number | 1 |
Logic inputs working modes | (SP) second set-point |
Auxiliary power supply | 5,0 Volt (Vrr) stabilized |
0-10Vdc programmable analog outputs | 1 |
Slave type PWM Command | 1 |
Protections | power supply overvoltages |
Work temperature | -10°C...+50°C |
Storage temperature | -20°C...+80°C |
SELPRO控制器ESY100系列介紹
用于通風式熱交換器，干式冷卻器和風冷式冷凝器上的軸流式和離心式風扇上的單相異步電機的專用 Vac無級控制器
Specialized Vac stepless Controllers for single-phase Asynchronous Motors on Axial & Centrifugal Fans ON Ventilated Heat Exchangers Drycoolers & Air Cooled Condensers
SELPRO控制器其他常用型號：
SELPRO ESY116-23-5-O-M-1-S-1
SELPRO ZBESY116235OM1S1
SELPRO RDM320-40-4-0-0-A-0-0
SELPRO VTS308-40-1-0-0-S-0-1
SELPRO ZNVTS30840100S03
SELPRO ZBESY108235OM1S3
SELPRO ZBZBESY108235OM1S3
SELPRO Controller NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于SELPRO控制器ZBESY108235OM1S3的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for SELPRO products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
SELPRO控制器ESY100系列ZBESY108235OM1S3技術參數介紹
