SIGMA閥20HM系列技術參數
Product Specifications | |
Flow Control Application: | Normally Closed |
Control Function: | Three-Way (Block & Bleed) |
Maximum Working Pressure (Control Ports): | 10,000 PSI (690 Bar) |
Operator (Pilot Cap): | Diaphragm Assembly 150 PSI (10.34 Bar) maximum - 30 PSI (2.06 Bar) minimum |
Instrument Supply Media for Operator (Pilot Cap): | Pneumatic on 20HM24 / 20HM30 |
Pilot Port Rotation (Orientation) Capability: | Full Turning Radius of 360o |
Manual Override Handle: | Rotating T-Handle Screw Type |
NO Manual Override Handle Option: | Include “-NO” at end of model number, i.e; 20HM24-NO |
Wetted Component Material (Metal): | 316 Stainless Steel and 17-4PH SS |
Seal Material: | Viton |
Panel Mount: | No |
Mount Bracket Available: | 20H26 Bracket |
Pilot Supply Operating Ratio: | 100 to 1 |
Orifice: | .125 Equiv. Diameter |
Cv Factor: | .20 |
Weight: | 7 Lbs. |
Operating Temperature: | -20° F to +250° F (-29° C to +121° C) |
Overall Dimensions: | 6-1/2 Height x 4-5/8 Pilot Head Diameter (16.51 cm Height x 11.75 cm PHD) |
Shelf Position Port Status | Pilot:Pilot Supply Inlet (Pneumatic On/Off Operating Pressure) |
SIGMA閥20HM系列介紹
20HM **系列三通NC閥是一個二位三通常閉,低先導供應壓力操作的液壓流量控制閥組件。 它的設計目的是在每次使用相對較低的先導供氣壓力時自動建立高壓液壓油輸出。
先導供應壓力的損失將阻塞液壓供應(入口)端口,并耗盡高壓接收控制回路內的累積工作壓力。 液壓接口(接口閥)通常用于控制表面控制的子表面安全閥(SCSSV)或表面安全閥(SSV)的打開/關閉操作順序。

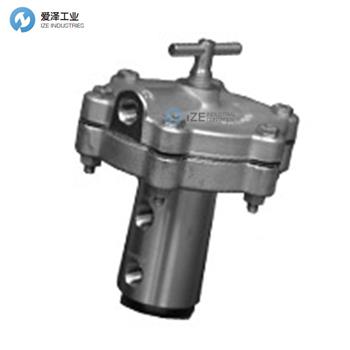

The 20HM** Series 3-Way NC valve is a two position, threeway normally closed, low pilot supply pressure operated,hydraulic flow control valve assembly. It is designed to establish high-pressure hydraulic fluid output, automatically with each application of relatively low Pilot Supply pressure.
A loss of Pilot Supply pressure will block the hydraulic Supply (inlet) port and exhaust the accumulated operating pressure within the high pressure receiving control circuit. Hydraulic Interfaces (Interface Valves) are generally used to control the open/close operating sequence of Surface Controlled SubSurface Safety Valves (SCSSV) or Surface Safety Valves(SSV).
SIGMA閥20HM系列其他常用型號:
SIGMA 20HM24
SIGMA 20HM30
SIGMA 20HM108
SIGMA 20HM109
