PHYTRON控制單元MSD2+系列技術規格
Specification | |
Mechanical | |
Dimensions (W x H x D) | 91,2 (14HP) x 280 (6U) x 230 mm |
Weight | approx. 3 kg |
Mounting | designed for installation into 19“/6U sub-rack or wall mounting |
Features | |
Stepper motors | suitable for the control of 2 phase stepper motors with 4, (6) or 8 lead wiring |
Power range, Phase currents | max. 15.4 A PEAK |
Supply voltage | 120 VDC (motor voltage) (mains) are generated internally from 115 to 250 VAC |
Adjustable step resolution | full step, half step, 1/4, 1/10, 1/20 of a full step |
Cable length | motor : shielded: 50 m max. |
Diagnosable errors | over-/undervoltage (< 40 VDC or > 160 VDC), overtemperature (T > 85 °C), overcurrent, short circuit |
Interfaces | |
Analogue outputs | A, B, C, D for a 2 phase stepper motor |
Digital outputs | optically insulated from the motor voltage, type Open-Collector Darlington; Imax = 50 mA, Umax = 24 V, UCEsat at 50 mA < 0.3 V Error |
Inputs | all inputs are designed for push-pull driver with 5 V level or Open-Collector : |
Communication and Programming | |
Parameterisation interface via ServiceBus | run-, stop-, Boost current, step resolution, current delay time,current shaping, pref. direction |
Diagnostics interface via ServiceBus | current setting, power stage temperature, power stage status, error inquiry |
Operating software | Phytron ServiceBus-Comm for Windows |
Operating Conditions | |
Temperature | operation: +4 to +40 °C (integrated fan) |
Degree of pollution | level 2 acc. to EN 50178 |
Relative humidity | 5 – 85 %. class 3K3 non condensing |
Protection class | IP 20 |
EMC immunity / | acc. to EN 50178: high-voltage current |
Approval | CE |
PHYTRON控制單元MSD2+系列介紹
MSD2 +是用于兩相步進電動機的雙極控制的功率級，可提供高達15 APEAK的最大相電流。
除了完整和半步，MSD2 +還提供高達1/20 MINI Step的分辨率。
根據MSD2 +選件（工作模式），可通過ServiceBus或旋轉開關設置功率級參數。此外，MSD2 +可以控制連接的（永磁體）電動機制動器。
通過獲得專利的SYNCHROCHOP原理進行的電流調節可確保步進電機的平穩運行和扭矩，從而實現最佳使用以及過載和升壓功能。
通過光耦合器可實現控制電路與控制單元電路之間的最佳干擾抑制，以實現推挽輸入與控制單元電壓的電氣隔離。
應用
作為強大的步進電機功率級，MSD2 +適用于高達800 W的軸功率，尤其適用于處理分立組件和機器維修任務以及高通量分揀和裝配機械。
MSD2+ is a power stage for bipolar control of 2-phase stepper motors.It is available up to 15 APEAK maximum phase current.
Besides full and half step the MSD2+ provides a resolution up to 1/20 MINI Step.
Depending on the MSD2+ option (operating mode), the power stage parameters are set via the ServiceBus or with the rotary switches.In addition, the MSD2+ enables the control of an attached (permanent magnet) motor brake.
The current regulation by the patented SYNCHROCHOP principle ensures a smooth operation of the stepper motor and the torque for optimum use as well as the Overdrive and Boost functions.
Optimum interference suppression between control and power circuit is obtained by optocouplers for electrical isolation of the pushpull inputs from the supply voltage.
Application
As a powerful stepper motor power stage the MSD2+ is suitable for up to 800 W shaft power,especially for the handling of discrete components and machine service tasks as well as for high-throughput sorting and assembly machinery.
PHYTRON控制單元MSD2+系列選型
PHYTRON控制單元MSD2+系列其他常用型號：

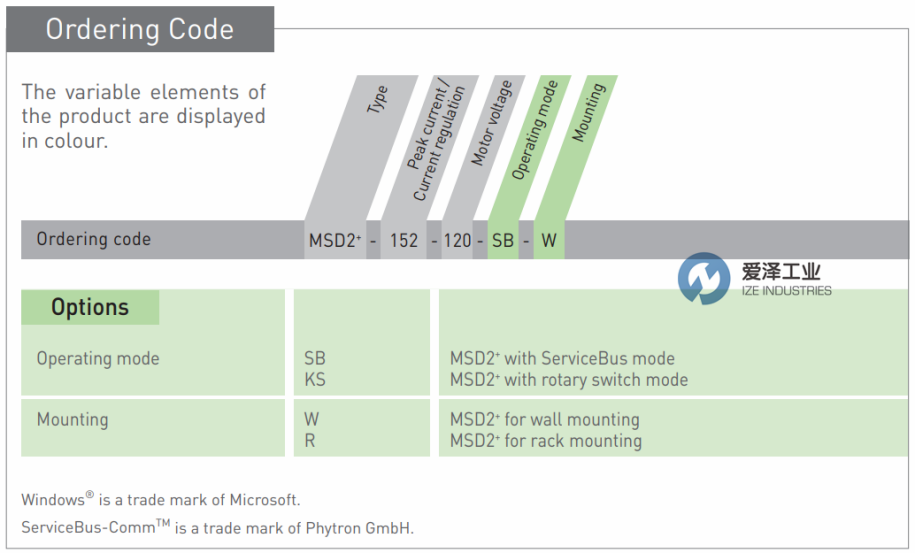

PHYTRON MSD2+152-120-SB-W
PHYTRON MSD2+152-120-KS-W
PHYTRON MSD2+152-120-SB-R
PHYTRON MSD2+152-120-KS-R
