ROSS電磁閥W6077B4401技術規格
DESCRIPTION: | ISO 5599/I ISO Size 3, W60 Series, 5/3 Double Closed Center Solenoid Controlled, Spool & Sleeve, Standard Temp, Non-Locking Manual Override, 24 VDC |
ISO SIZE | 3 |
BASE PORT SIZE | 1/2 - 3/4 |
FUNCTION | 5/3 Double |
CENTER POSITION | Closed Center |
VOLTAGE | 24 VDC |
CONSTRUCTION | Spool & Sleeve |
ACTUATION | Solenoid Controlled |
AVG CV | 3.8 |
MANUAL OVERRIDE | Non-Locking |
MOUNTING | Base Mounted |
FLOW MEDIA | Filtered Air |
APPLICATION | Standard Temp |
INLET PRESSURE RANGE | VACUUM to 150 PSIG (VACUUM to 10 BAR) |
AMBIENT TEMPERATURE RANGE | 40 to 120 F (4 to 50 C) |
MEDIA TEMPERATURE RANGE | 40 to 175 F (4 to 80 C) |
WEIGHT | 40 lbs(1.81kg) |

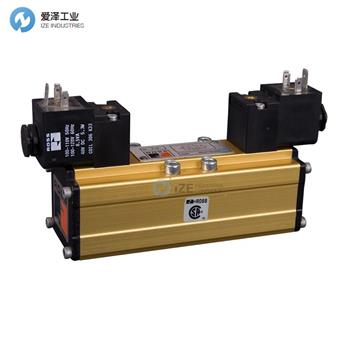

ROSS電磁閥W6077B4401產品介紹
線軸和套筒
ISO尺寸1、2和3
5/2或5/3選項
單基座和閥塊基座安裝
DIN插頭連接器
Spool and sleeve
ISO Size 1, 2, and 3
5/2 or 5/3 options
Single base and manifold base mounting
DIN Plug connectors
ROSS電磁閥W60系列其他常用型號：
ROSS W6077B2401
ROSS W6077B2411
ROSS W6077B3401
ROSS W6077B3411
ROSS W6077B4401
ROSS W6077B4411
ROSS W6077B5401
ROSS W6077B5411
