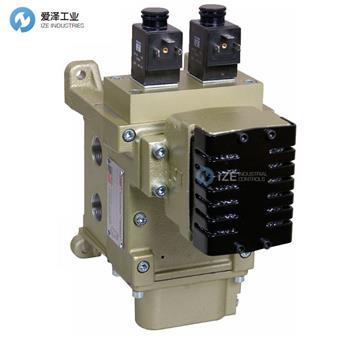

ROSS閥DM2DXA5XA2X技術參數
Code | DM2DXA5XA2X |
PRODUCT | DM2D |
THREAD | X = N/A (no base) |
REVISION LEVEL | A = Size 4, 8, 12, 30 |
BASIC SIZE | 5 = 8 |
BASE PORT SIZE | X = Valve only (less base) |
VOLTAGE | A = 24 volts DC |
RESET TYPE | 2 = SOLENOID |
STATUS INDICATOR | X = NO |
ROSS閥DM2D系列介紹
ROSS DM2? D系列雙閥具有兩個閥元件，由兩個電磁導閥獨立控制。兩個閥元件共享共同的入口、出口和排氣端口。當先導閥同時通電時，閥芯動作，使閥門作為 3/2 常閉閥發揮作用。
如果其中一個閥元件未與另一個閥元件同步打開或關閉，則閥門進入故障狀態，排出下游空氣并將殘余出口壓力保持在小于入口供應的 1%。這是 ROSS DM2? D 系列設計的一個重要安全特性。閥元件冗余提供了一個額外的安全系數，因?yàn)樵谕谎h(huán)中兩個閥元件發生故障的可能性被認為是極小的。 DM2? 閥還有一個集成到閥元件中的內部監視器。如果閥門運行異常，監控器將鎖定閥門并防止進一步運行，直到采取糾正措施為止。
A ROSS DM2? Series D double valve has two valve elements independently controlled by two solenoid pilots. The two valve elements share common inlet, outlet, and exhaust ports. When the pilot valves are simultaneously energized, the valve elements operate so that the valve functions as a 3/2 normally closed valve.
If one of the valve elements does not open or close synchronously with the other, the valve goes into a faulted condition, exhausts downstream air and keeps residual outlet pressure to less than 1% of inlet supply. This is an important safety characteristic of the ROSS DM2? Series D design. Valve element redundancy provides an additional safety factor, as the likelihood of a malfunction in both valve elements in the same cycle is considered extremely remote. DM2? valves also have an internal monitor that is integrated into the valve elements. Should the valve operate abnormally, the monitor will lock-out the valve and prevent further operation until corrective action is taken.

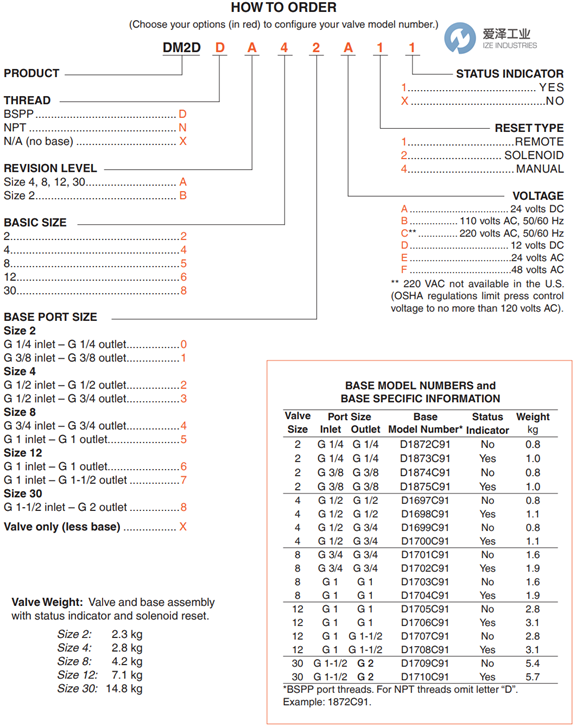

ROSS閥DM2D系列選型
ROSS閥DM2D系列其他常用型號：
ROSS DM2DXA5XA2X
ROSS DM2DDA54B2X
ROSS DM2DDA54B4X
ROSS DM2DDA54B41
ROSS DM2DDA67B41
ROSS DM2DNA54A1X
ROSS DM2DNA54A21
ROSS DM2DNA54A2X
ROSS DM2DNA54A41
ROSS DM2DNA54A4X
ROSS DM2DNA54B11
ROSS DM2DNA54B1X
ROSS DM2DNA54B2X
ROSS DM2DNA54B41
ROSS DM2DNA54B4X
ROSS DM2DDB20A41
ROSS VALVE NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于ROSS閥DM2DXA5XA2X的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for ROSS products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
