WHITMAN CONTROLS壓力開關P119G系列產品介紹
TECHNICAL SPECIFICATIONS | |
Switch Application | Zinc Alloy P119 (1-500psig) |
Is OEM Replacement Part? | No |
Switch Availability | Custom / 5 - 10 Days |
Set Point Pressure Range | 1 To 100 |
Circuit Type | SPDT |
Set Point Options | SPDT Customer Set |
Maximum Amperage And Voltage | 1 Amp 125 VAC Gold |
Electrical Interface | L - 12" Leads - Insulated Base |
Maximum System Pressure | 100 PSIG |
Fitting | 1/8" NPT Male |
Corrosive Media | No |
Wet/Dry/Submerged | Standard (Dry Use) |
Wetted Materials | Zinc, SS & Loctite |
Additional Options | Many Options Are Available. |
Standard Fitting Size | 1/8"NPT |
Shipping Weight Ounces | 5 Ozs |

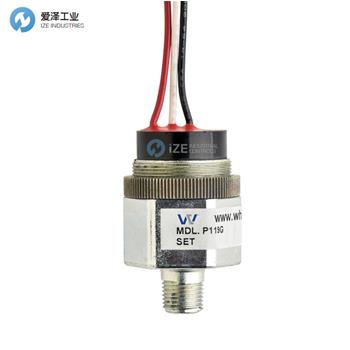

WHITMAN CONTROLS壓力開關P119G系列介紹
The Whitman Controls P119G Zinc Diecast Body Pressure Switches are the inexpensive version of the P117G and recommended for indoor OEM use. It is used as a pressure limit switch on X-Ray tube and Cat Scan Tubes as well as a safety switch in numerous applications. The compact nature of these switches make them ideal for tight spaces. They are available with a cast in ?” NPT fitting as an option. There are also several electrical interface options available.
Key Features:
Zinc Diecast Body
Set point options: Factory set, field adjustable, or a combination
Extensive operating temperature range
Wide range of electrical interfaces available
SPDT or SPST availability
Specifications:
Set point range: 0.80 to 500 PSIG
Max System pressure: 150% of sensor capacity
Temperature range: -65°F to +225°F (-54°C to +107°C)
Amps: 5 Amps Max
Sensor Element: Capsule
Weight: 2.0 oz (varies with electrical interface selection)
Cycling: 3H/5H - Not to exceed 60 CPM, 10H/25H/50H - Not to exceed 20 CPM
Wetted Parts:
Capsule: 17-7 PH
Seal: Loctite #271
Body with Fitting: Round Body - Zamac 3 / Chromate finish, Hex Body - ZA8, chromate finish
Body: Anodized aluminum
Standard Thread: ?-27 NPT male, Optional Threads: ?-18 NPT male (Hex body only)
Whitman Controls P119G鋅壓鑄人體壓力開關是P117G的廉價版本，推薦用于室內OEM使用。它用作X射線管和Cat掃描管上的壓力限制開關，以及在許多應用中的安全開關。這些開關的緊湊性使其成為狹窄空間的理想選擇。它們可選配1/4英寸NPT鑄件。也有幾個電氣接口選項可用。
主要特征：
鋅壓鑄件
設定點選項：出廠設定，現場可調或組合
廣泛的工作溫度范圍
多種電氣接口可用
SPDT或SPST可用性
規格：
設定點范圍：0.80至500 PSIG
最大系統壓力：傳感器容量的150％
溫度范圍：-65°F至+ 225°F（-54°C至+ 107°C）
安培：最大5安培
傳感器元件：膠囊
重量：2.0盎司（隨電氣接口選擇而變化）
循環：3H / 5H-不超過60 CPM，10H / 25H / 50H-不超過20 CPM
濕零件：
膠囊：PH為17-7
封?。簶诽?71
帶接頭的閥體：圓形閥體-Zamac 3 /鉻酸鹽表面處理，六角閥體-ZA8，鉻酸鹽表面處理
主體：陽極氧化鋁
標準螺紋：?-27NPT外螺紋，可選螺紋：?-18NPT外螺紋（僅十六進制）

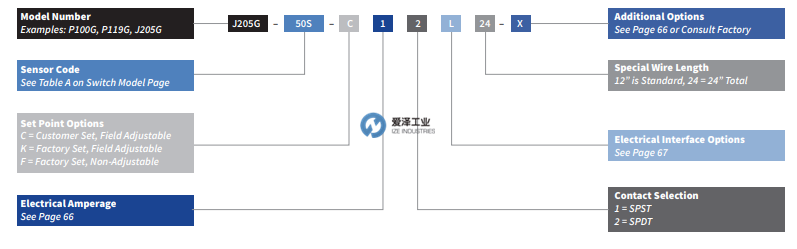

WHITMAN CONTROLS壓力開關P119G系列選型
WHITMAN CONTROLS壓力開關P119G系列其他型號列舉
WHITMAN CONTROLS P119G-3H-C52L
WHITMAN CONTROLS P119G-10H-C12L
WHITMAN CONTROLS P119G-3H-C12L
WHITMAN CONTROLS P119G-3H-C12TS
WHITMAN CONTROLS P119G-25H-C12TB
WHITMAN CONTROLS P119G-3H-C12TB
WHITMAN CONTROLS P119G-50H-C52L
WHITMAN CONTROLS P119G-5H-C52L
WHITMAN CONTROLS P119G-10H-C52TS
WHITMAN CONTROLS P119G-5H-C12TS
WHITMAN CONTROLS P119G-25H-C52TB
WHITMAN CONTROLS P119G-50H-C12L
WHITMAN CONTROLS P119G-50H-C52TS
WHITMAN CONTROLS P119G-50H-C12TS
WHITMAN CONTROLS P119G-50H-C52TB
WHITMAN CONTROLS P119G-5H-C12TB
WHITMAN CONTROLS P119G-5H-C12L
WHITMAN CONTROLS P119G-25H-C52TS
WHITMAN CONTROLS P119G-5H-C52TS
WHITMAN CONTROLS P119G-3H-C52TS
WHITMAN CONTROLS P119G-25H-C12TS
WHITMAN CONTROLS P119G-10H-C12TS
WHITMAN CONTROLS P119G-10H-C52TB
