SULLIVAN&SONS定位器3300L系列技術參數
Product Specification | |
Model | SS-3300L |
Input Signal | 4~20mA DC |
Minimum Current Signal | 3.2mA(Standard), 3.8mA(Hart Included) |
Supply Pressure | 0.14~0.7 MPa (1.4~7 bar) |
Stroke | 10~150 mm |
Impedance | Max.450? @ 20mA DC |
Air Connection | PT, NPT 1/4 |
Gauge Connection | PT, NPT 1/8 |
Conduit Entry | PF(G) 1/2 |
Protection Grade | IP66 |
Explosion Proof | Ex ia IIC T6 / T5 (in progress) |
Ambient Temperature | Operating Temp. :-30~85℃ |
Linearity | ±0.5% F.S. |
Hysteresis | 0.5% F.S. |
Sensitivity | ±0.2% F.S |
Repeatability | ±0.3% F.S. |
Flow Capacity | 70 LPM (Sup.=0.14 MPa) |
Air Consumption | Below 2 LPM (sup = 0.14 MPa), Below 3 LPM (sup = 0.7MPa) |
Output Characteristic | Linear, Quick Open, EQ%, User Set (16 point) |
Vibration | No Resonance upto 100Hz @ 6G |
Humidity | 5-95% RH @ 40℃ |
Communication (Option) | HART Communication |
Feedback Signal (Option) | 4~20mA (DC 10~30V) |
Material | Aluminum Diecasting |
Weight | 2.0kg |
Painting | Epoxy Polyestere Powder Coating |

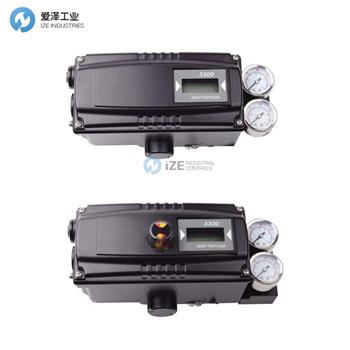

SULLIVAN&SONS定位器SS3300系列介紹
SS-3300系列智能閥門定位器可響應來自控制器的4-20mA輸入信號來精確控制閥門行程。內置微處理器優化了定位器的性能，并提供了諸如自動校準，PID控制，警報和HART協議通信之類的獨特功能。
SS-3300 series Smart Valve Positioner accurately controls valve stroke in response to an input signal of 4-20mA from the controller. Built-in micro-processor optimizes the positioner’s performance and provides unique functions such as Auto-Calibration, PID Control, Alarms, and HART Protocol Communications.

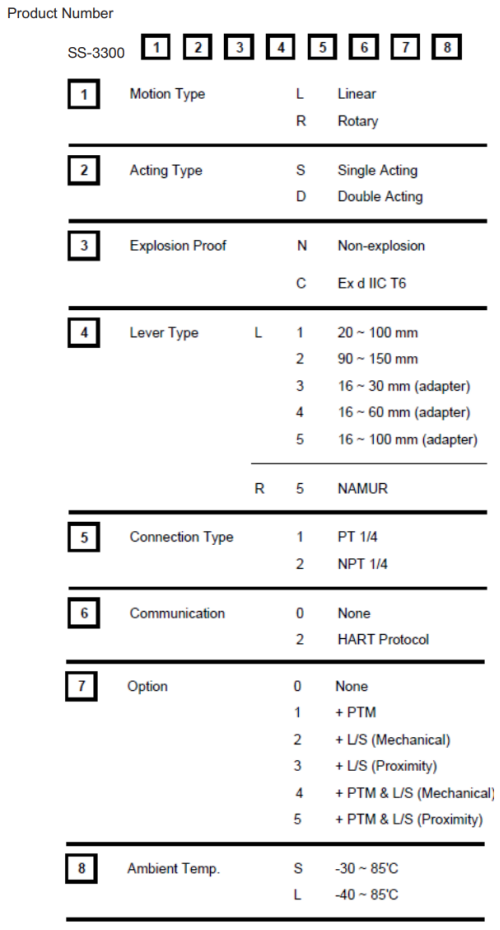

SULLIVAN&SONS定位器SS3300系列選型
SULLIVAN&SONS定位器SS3300系列其他常用型號：
SULLIVAN&SONS 3300LSi1520S
SULLIVAN&SONS 3300R
