TESCOM調節閥44-2300系列技術規格
Controlled Pressure Ranges | 0-25, 0-50, 0-100, 0-250 psig |
Design Proof Pressure | 150% maximum rated |
Leakage | Internal: Bubble-tight |
Operating Temperature | -40°F to 140°F / -40°C to 60°C |
Flow Capacity | Cv = 0.08 |
Maximum Operating Torque | 30 in-lbs / 3.4 N?m |
Body | 316 Stainless Steel, Brass, or Monel |
Bonnet | 300 Series Stainless Steel, Brass |
Seat | PCTFE |
Diaphragm | 316 Stainless Steel or Cobalt Chrome Nickel Alloy (Eligiloy?) |
Remaining Parts | 316 Stainless Steel, Monel (for Monel body) |
Cleaning | CGA 4.1 and ASTM G93 |
Weight (without gauges) | 2 lbs / 0.9 kg |

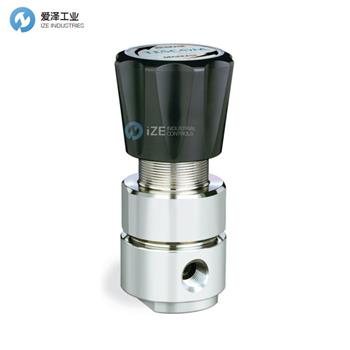

TESCOM調節閥44-2300系列介紹
TESCOM 44-2300系列是一款緊湊、輕便的單級背壓調節器，適用于低于4 SCFM / 113 SLPM的特種、易燃和工業氣體流量。防擴散金屬隔膜密封確保氣體純度和完整性。
TESCOM 44-2300 Series is a compact, lightweight, single-stage backpressure regulator for specialty, flammable, and industrial gas flows of less than 4 SCFM / 113 SLPM. Diffusion-resistant metal diaphragm seal ensures gas purity and integrity.

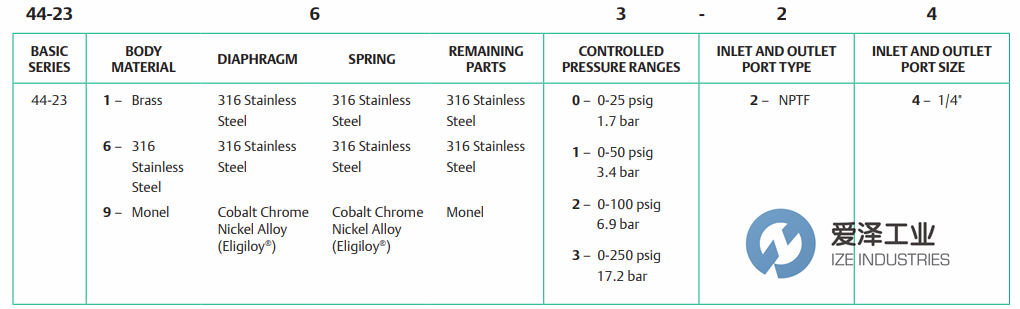

TESCOM調節閥44-2300系列選型
TESCOM調節閥44-2300系列其他常用型號：
TESCOM 44-2360-A4-016
TESCOM 44-2363-24
TESCOM 44-2363-24-007
TESCOM Pressure Reducing Regulators NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于TESCOM調節閥44-2360-A4-016的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for TESCOM products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
TESCOM調節閥44-2300系列44-2360-A4-016介紹及選型
