FRANKLIN監測儀586 000 5100技術參數
Specifications: | |
Model Number | |
Premium Package | 586 000 5100 |
Standard Unit | 586 000 5000 |
Display Only | 225 190 902 |
Base Only | 225 210 902 |
Input Voltage | 190 – 600 VAC |
Frequency | 60/50 Hz |
Motor Service Factor Amps | 5 to 350 Amps |
Maximum Conductor Size Through Sensors | |
Max Diameter | 0.920 in. (23 mm) |
Trip Response | |
Motor Under/Overload, Under/Overvoltage, Overheat, Unbalance | 3 seconds |
Control Circuit Rating | 1.5 Amp AC, up to 600 volts |
Signal Circuit Rating | 1 Amp AC, up to 250 volts (Incandescent lamp: 100 watts max) |
Wiring Terminals | |
Wire Gauge | #12 to #18 AWG |
Tighten to | 4.5 in-lbs |
Weight (SubMonitor) | 3.3 lbs/1.5 kg |
Carton Size (Std. Unit). | 7.75 in x 11.5 in x 6.75 in (19.7 cm x 29.2 cm x 17.1 cm) |
Shipping Weight (Std. Unit) | 3.5 lbs/1.5 kg |
FRANKLIN監測儀介紹
SubMonitor可以防止不利條件發生，例如低流量井，泵損壞，堵塞，泵束縛和電源事故。SubMonitor旨在保護額定功率在3至200 hp之間的三相電動機和泵系統。
電流，電壓和電動機溫度通過三個集成的電流互感器進行監控。數字顯示屏可提供三個支路的電流和電壓讀數，并允許用戶快速輕松地設置SubMonitor。 可以使用Franklin的D3設備將數據下載到PC。

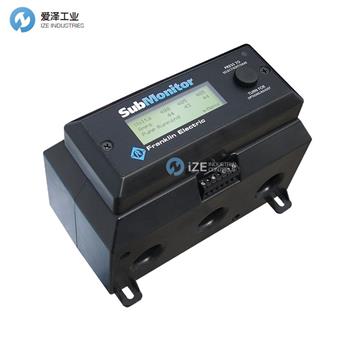

With Franklin Electric’s SubMonitor, you can protect against adverse conditions such as low-flow wells, pump damage, clogging, bound pumps and power mishaps. SubMonitor is designed to protect three-phase motor and pump systems with ratings between 3 and 200 hp.
Current, voltage and motor temperature are monitored using three integrated current transformers.A digital display provides current and voltage readings for all three legs and allows the user to set up the SubMonitor quickly and easily. Data can be downloaded to a PC using Franklin’s D3 device.
FRANKLIN監測儀其他常用型號：
FRANKLIN 5860005000
FRANKLIN 5860005100
FRANKLIN NEW + ORIGINAL+ ONE YEAR WARRANTY
