FLUTEC調節閥RVP系列技術描述
SPECIFICATIONS | |
Operating pressure: | max. 350 bar |
Nominal flow: | RV, RVP-06 max. 20 l/min |
Cracking pressure | 0.5 bar |
Media operating temperature range: | min. -20 °C to max. +80 °C |
Ambient temperature range: | min. -20 °C to max. +80 °C |
Operating fluid: | Hydraulic oil to DIN 51524 Part 1 and 2 |
Viscosity range: | min. 2.8 mm2/s to max. 800 mm2/s |
Filtration: | Class 21/19/16 according to ISO 4406 or cleaner |
MTTFd: | 150 years |
Installation: | No orientation restrictions |
Materials: | Valve body: steel |
Weight:= | RV 06 = 0.1 kg RVP 06 = 0.2 kg |

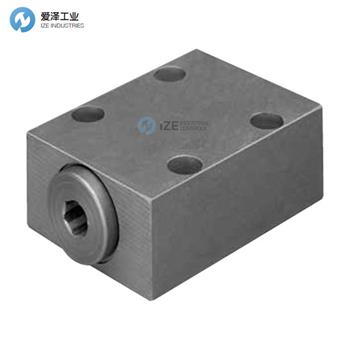

FLUTEC調節閥RV/RVP系列產品介紹
特征
單向閥,用于串聯安裝并直接安裝在控制歧管上
九種尺寸可供選擇,可確保對系統的最佳適應性
無泄漏提動閥芯設計可完全關閉
提供可選的鍍鋅版本(RVP)
可選擇0.5 bar以外的破裂壓力
FEATURES
Check valves for mounting directly inline and directly onto control manifolds
Choice of nine sizes ensures best possible adaptability to the system
Leak-free poppet design for complete shut-off
Optional zinc-plated version (RVP) available
Cracking pressures other than 0.5 bar are available as an option

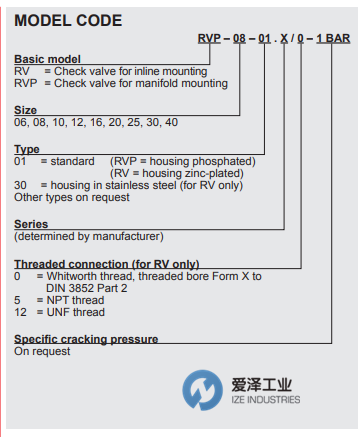

FLUTEC調節閥RVP-10-01.X選型圖及尺寸圖
FLUTEC調節閥RVP系列其他常用型號:
FLUTEC RV-06-01.1/0 705826
FLUTEC RV-08-01.1/0 705829
FLUTEC RV-10-01.1/0 705832
FLUTEC RV-12-01.1/0 705835
FLUTEC RV-16-01.1/0 705838
FLUTEC RV-20-01.1/0 705841
FLUTEC RV-25-01.1/0 705844
FLUTEC RV-30-01.1/0 705847
FLUTEC RV-40-01.1/0 705850
FLUTEC RVP-06-01.1 705927
FLUTEC RVP-08-01.1 705929
FLUTEC RVP-10-01.1 705931
FLUTEC RVP-12-01.1 705933
FLUTEC RVP-16-01.1 705935
FLUTEC RVP-20-01.1 705937
FLUTEC RVP-25-01.1 705939
FLUTEC RVP-30-01.1 705941
FLUTEC RVP-40-01.1 705943
FLUTEC Control valve NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年,定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣,液壓以及氣動解決方案的合作伙伴,我們利用我們的全球協作團隊,為客戶提供先進解決方案,市場知識以及相關增值服務來幫助優化客戶的工作效率,提高可靠性和安全性,致力于成為工業產品和解決方案的優質渠道。
如果有任何關于FLUTEC調節閥RVP-10-01.X的疑問,請隨時與我們溝通(021-31006702)。我們將盡全力解決您的問題。
