UE壓力開關120系列技術參數
specifications | |
Storage temperature | -65 to 160°F (-54 to 71°C) |
Ambient temperature limits | -58 to 160°F (-50 to 71°C); models 36-39, 520-525, 540-548, 701-705, 15834-15839: 0 to 160°F (-17 to 71°C); types 820E, 822E: -40 to 160°F (-40 to 71°C) set point typically shifts less than 1% of range for a 50°F (28°C) ambient temperature change;less than 2% for types E121& E122 |
Set point repeatability | Temperature models: Type B, C and F: ±1% of full scale range |
Shock | Set point repeats after 15 G, 10 millisecond duration |
Vibration | Set point repeats after 2.5 G, 5-500 Hz |
Enclosure | Die cast aluminum, epoxy powder coated; gasketed; cover lock; internal set point lock standard on types J, C, F; gasketed stainless steel tamper-resistant dial cover on types B,H, E; aluminum nameplate |
Enclosure classification | Certified to enclosure type 4X. Class I, Division 1 product meets enclosure type 7; Class II, Division 1 product meets enclosure type 9. Certified to IP66 requirements |
Switch output | One or two SPDT; dual switch may be separated up to 100% of range; except type 822E where switch #2 can be set up to 25% of range span below switch #1 setpoint; switches may be wired “normally open” or “normally closed”. |
Electrical rating | 15A 125/250/480 VAC resistive (standard), 2A @ 30 VDC, 1A @ 48 VDC, 0.5A @ 125 VDC; except types J120-15622, 15834-15839, H121-15875: 20A 125/250/480 VAC resistive, 6A @ 30 VDC, 0.5A @ 125 VDC, 0.25A @ 250 VDC; except types B121-13272,B122-13322, E121-13273, E122-13321: 22A 480 VAC resistive, 2A @ 30 VDC, 1A @ 48 VDC, 0.4A @ 125 VDC. |
Reference scales | Types B, E & H: external dial. Scale divisions vary with range (see model charts) |
Weight | 3-8 lbs. Varies with type and model |
Electrical connection | Type H, B, E; one 3/4" NPT E/C; type J, C, F, 820E, 822E; two 3/4" NPT E/C;terminal block standard |
Pressure connection | Models S126B-S164B, 171-194, 483-494, 520-535: 1/2" NPT (female); models 565-567:1-1 ? 2" flush mount connection; models 540-548: 1/8" NPT (female); all others: 1/4" NPT(female) |
Temperature assembly | Bulb and capillary: 6 feet 304 stainless steel (standard) except for E121-13273 and E122-13321: 10 feet; Fill: Non-toxic oil filled |
Temperature deadband | Type F120, 820E, 822E: typically 1%; type B-, C-, and E- 121 and 122: typically 2% of range under laboratory conditions (70°F [21°C] ambient circulating bath at rate of 1/2°F per minute change) |
UE壓力開關120系列介紹
隨著安全要求變得越來越嚴格，確定經過工業壓力，壓差和/或溫度SIL2認證的開關的決定性因素取決于保護設備，過程和人員的開關。 UE 120系列通過全球認可和認證來滿足危險場所的要求，是存在潛在爆炸性或高腐蝕性氣氛的選擇。
經過120系列SIL2認證的開關可提供多種壓力，真空，壓差和溫度范圍，以及過程連接，濕潤材料和傳感器類型。 通過通用的靈活平臺，可以在工廠針對特定要求（例如范圍，過程連接和電氣額定值）快速調整模型。 使用120系列SIL認證開關的典型行業包括化學，石化，煉油，油氣生產和傳輸以及制藥。
As safety requirements become more stringent, the determining factor in specifying an industrial pressure, differential pressure, and/or temperature SIL2-certified switch rests upon that switch protecting equipment, processes, and personnel. Meeting hazardous location requirements through worldwide approvals and certifications, UE’s 120 Series is the choice where potentially explosive or highly corrosive atmospheres exist.
The 120 Series SIL2-certified switch offers a variety of pressure, vacuum, differential pressure, and temperature ranges, as well as process connections, wetted materials, and sensor types. With a common flexible platform, models can quickly be adapted at the factory for special requirements such as ranges, process connections, and electrical ratings. Typical industries using the 120 Series SIL-certified switch include chemical, petrochemical, refinery, oil and gas production and transmission, and pharmaceuticals.
UE壓力開關120系列其他常用型號：
UE J120-126
UE J120-191
UE J120-137
UE J120-144
UE J120-152
UE J120-156
UE J120-164
UE Pressure and Vacuum switches NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于UE壓力開關J120-191的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for UE products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.

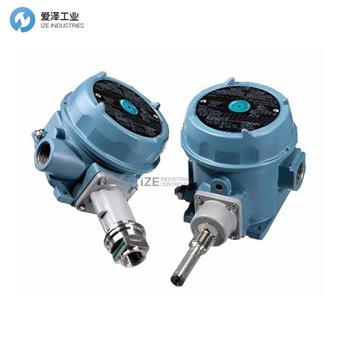

UE壓力開關120系列J120-191產品介紹
