WOODWARD控制閥GS16系列技術參數
Specifications | |
Nominal Gas Flow Control Range: | 22 to 13 608 kg/h (50 to 30 000 lb/h) |
Gas Supply Pressure: | 345 to 5171 kPa (50 to 750 psig) |
Gas Temperature: | –40 to +93 °C (–40 to +200 °F) |
Minimum Pressure Differential: | 138 kPa (20 psid) recommended for specified flow control accuracy |
Maximum Pressure Differential: | (Reference product manual 26228 for operational limits.) |
Gas Filtration Recommendations: | 25 μm Absolute |
Metering Ports (Maximum Area): | 645 mm2, 968 mm2, and 1290 mm2 (1.00 in2, 1.50 in2, and 2.00 in2) |
Heat Soak Rating: | 125 °C for 6 hours, unpowered |
Digital Input: | DeviceNet? */CANopen |
Metering Valve Leakage: | < 0.1% of rated flow maximum at 50 psig (345 kPa) inlet pressure, 0 psig discharge |
Slew Rate: | < 100 ms |
Position Loop Bandwidth: | 40 rad/s at –6 dB at 24 Vdc |
Gas Connection: | 2.00 inch (50.8 mm) RF flanges per ANSI B16.5 Class 600 |
Flange to Flange Dimension: | 8.50 inches ( 215.9 mm) nominal |
Materials: | Stainless steel housing and internal parts in contact with gas NACE MR0175-2000 compliant |
Weight: | 48 kg (105 lb) |

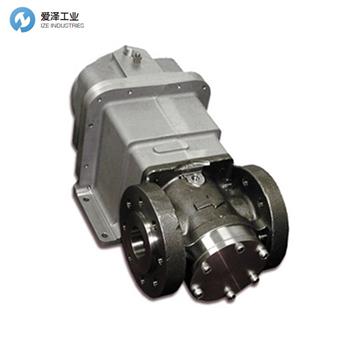

WOODWARD控制閥GS16系列介紹
伍德沃德GS16燃?xì)忾y適用于最大額定功率在10到50兆瓦之間的工業燃?xì)廨啓C(jī)發動機，該組件為電子控制系統與用于發電，壓縮機或燃?xì)廨啓C(jī)的燃?xì)廨啓C(jī)之間提供了可靠，經濟高效的接口 閥組件可用于基礎渦輪機或干式低排放渦輪機中的多閥配置。
The Woodward GS16 gas valve is suitable for use on industrial gas turbine engines with maximum power ratings between 10 and 50 MW.The assembly provides a reliable, cost-effective interface between electronic control systems and gas turbines used in electrical power generation,compressor, or mechanical drive applications.The valve assembly can be used for base turbines or in multiple valve configurations in Dry Low Emission turbines.
WOODWARD控制閥GS16系列其他常用型號：
WOODWARD 9908-273
WOODWARD 9908-1554
WOODWARD 9908-1555
WOODWARD 9908-1556
WOODWARD 9908-1557
WOODWARD 9908-232
WOODWARD 9908-1544
WOODWARD 9908-1545
WOODWARD 9908-1529
WOODWARD 9908-1531
WOODWARD 9908-1532
WOODWARD 9908-1533
WOODWARD 9908-1534
WOODWARD 9908-1536
WOODWARD Control valve NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于WOODWARD控制閥9908-273的疑問，請隨時與我們電聯，（021-3100 6702），我們將盡全力解決您的問題。
If you have any question for WOODWARD products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: jjxdch.cn.
WOODWARD控制閥9908-273介紹
