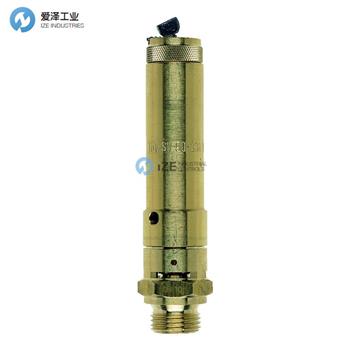

EWO安全閥351.226參數介紹
Technische Daten: | |
Connection thread | G1/4, G3/8, G1/2 |
Operating temperature | -10°C up to +180°C |
Setting range | 1 to 40 bar (10 steps) |
Opening pressure difference | < 10% |
Closing pressure difference | < 10% (under 3 bar ≤ 0,3 bar) |
Built-in position | vertical |
Material | brass |
Seal | FKM (viton) |
Leading | aluminium |
Locking torque (valve installation) | 13 Nm |
Important: The supply connection to the safety valve should not be < DN 8, the pressure drop in the supply connection not > 3%. | |
EWO安全閥351系列選型及介紹
Safety valves serve to blow out non-poisonous and non-flammable gases into the atmosphere in order to protect pressure tanks against overpressure.
Please note: Only safety valves that have been set and sealed with lead (plumbed) by us can be delivered with the component symbols, it is thus absolutely necessary to indicate the setting pressure in bar when placing your order. To test their proper functioning, safety valves can be relieved by turning the knurled (thumb) screw to the left. The bearing surfaces and conical seals can be cleaned of impurities by unscrewing the entire upper part - without changing the pressure setting.
安全閥用于將無毒和不易燃氣體排入大氣，以保護壓力罐免受超壓。
請注意：僅提供由我們設置并用鉛（鉛）密封的安全閥及組件符號，因此絕對有必要在訂購時以巴表示設定壓力。為了測試其正常功能，可以通過向左轉動滾花（拇指）螺釘來釋放安全閥。擰開整個上部，可以清除軸承表面和圓錐形密封件上的雜質，而無需更改壓力設置。
EWO安全閥351系列其他型號列舉：
EWO 351.221
EWO 351.222
EWO 351.223
EWO 351.224
EWO 351.225
EWO 351.226
EWO 351.227
EWO 351.241
EWO 351.242
EWO 351.243
EWO 351.244
EWO 351.245
EWO 351.246
EWO 351.247
EWO 351.251
EWO 351.252
EWO 351.253
EWO 351.254
EWO 351.255
EWO 351.256
EWO 351.257
EWO 351.421
EWO 351.422
EWO 351.423
EWO 351.441
EWO 351.442
EWO 351.443
EWO 351.451
EWO 351.452
EWO 351.453
EWO valve NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于EWO安全閥351.226的疑問，請隨時與我們電聯，（021-3100 6702），我們將盡全力解決您的問題。
If you have any question for EWO products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: jjxdch.cn.
EWO安全閥351.226產品介紹及技術參數
