RECO模塊RM-DPC 5000 Micro技術參數
Technical specifications | |
RM-DPC 5000 Micro | |
ΔP measuring range | Full scale output configurable from 1000 Pa ... 5000 Pa in 500 Pa increments |
Full scale output (FSO) | 5000 Pa |
Measuring sensor | Piezoresistive, overpressure-proof up to 138 kPa |
Accuracy (linearity and hysteresis) | ≤ ± 1 % FSO |
Supply voltages | 230 V AC + / -10% |
Signal input | 4-20 mA to connect an external differential pressure sensor |
Fuses | F1 T 0,4 A, 250 V, 5 x 20 mm |
Temperature range | - 20°C to + 60°C |
Protection rating | Casing IP-66 / NEMA 4 |
Weight | approx. 0.8 kg |
Installation height | max. 3000 m above M.S.L. |
RECO模塊RM-DPC系列介紹
SensorLine RM-DPC Micro系列中的設備是差壓控制器，設計用于堅固的工業環境。 它們用于在超壓和不足壓力范圍內測量，可視化和控制非腐蝕性氣體介質。

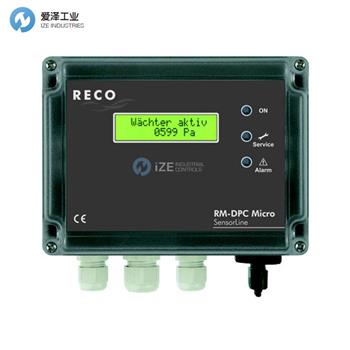

The devices in the SensorLine RM-DPC Micro series are differential pressure controllers designed for use in robust, industrial environments. They are used for measuring, visualising and controlling nonaggressive, gaseous media in the excess pressure and insufficient pressure ranges.
RECO模塊RM-DPC系列其他常用型號：
RECO RM-DPC 5000 Micro
RECO RM-DPC 10000 Micro
RECO RM-DPC Micro FP
RECO RM-DPS Micro
RECO PM-XT
RECO PM-20
RECO Module NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于RECO模塊RM-DPC 5000 Micro的疑問，請隨時與我們電聯，（021-3100 6702），我們將盡全力解決您的問題。
If you have any question for RECO products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: jjxdch.cn.
RECO模塊RM-DPC 5000 Micro產品介紹
