UE壓力開關100系列技術參數
specifications | |
Storage temperature | -65 to 160°F (-54 to 71°C) |
Ambient temperature limits | -40 to 160°F (-40 to 71°C); models 520-525, 540-548, 700-706, 15731-15736: 0 to 160°F (-18 to 71°C); Set point typically shifts less than 1% of range for a 50°F (28°C) ambient temperature change |
Set point repeatability | Temperature models: ± 1% of adjustable range |
Shock | Set point repeats after 15 G, 10 millisecond duration |
Vibration | Set point repeats after 2.5 G, 5-500 Hz |
Enclosure | Die cast aluminum, epoxy powder coated, gasketed, captive cover screws |
Enclosure classification | Enclosure type 4X |
Switch output | One SPDT snap action switch; switch may be wired “normally open” or “normally closed” |
Electrical rating | 15A 125/250/480 VAC resistive except for H100-15623, 15731-15737, 15884, 20A 125/250/480 VAC resistive, B100-13546 and E100-13545, 22A/480 VAC. Electrical switches have limited DC capabilities at 24-30 VDC, 2A resistive and 1A inductive. 125 VDC, 0.5A resistive, 0.03A inductive. Consult factory for additional information. |
Weight | 2-7 lbs; Varies with model |
Electrical connection | 1/2” NPT (female); Two 7/8” diameter knockouts |
Pressure connection | Models 15623, 218, 270-376, 610-680, 701-706, 15731-15884: 1/4” NPT (female); Models 171-194, 483-494, 520-535, 15737: 1/2” NPT (female); Models 540-548: 1/8” NPT (female); Models 560-564: 2” Sanitary Fitting; Models 565-567: 1.5” Sanitary Fitting (Sanitary fittings mate with Tri-Clamp? fitting systems) |
Temperature assembly | Bulb and capillary: 6 feet 304 stainless steel except for E100-13545, 10 feet 304 stainless steel |
Fill | Models 1BS/BC are solvent filled, models 2-8 non-toxic oil filled |
Temperature deadband | Type F typically 1% and type B, C, and E typically 2% of range under laboratory conditions (70°F ambient circulating bath at rate of 1/2°F per minute change) |
Heat tracing or Freeze protection | Thermostats designed specifically for heat tracing and freeze protection ambient sensing applications are available with types B100 and E100 |
UE壓力開關100系列介紹
100系列是經濟高效的SIL認證開關，適用于加工廠和OEM設備的壓力，真空，差壓和溫度應用。 堅固的一體式外殼具有傾斜的蓋子，便于接線。
各種各樣的微動開關和過程連接選項使這種多功能，經過SIL認證的開關非常適合需要堅固耐用的防風雨設備的應用。
使用100系列的典型應用是伴熱，防凍，處理設備（泵，壓縮機），信號器面板的輸入和滅火系統。
The 100 Series is a cost-effective, SIL-certified switch for pressure, vacuum, differential pressure, and temperature applications in process plants and OEM equipment. The rugged, one-piece enclosure features a slanted cover for wiring accessibility.
A wide variety of microswitch and process-connection options make this versatile, SIL-certified switch ideal for applications requiring a rugged weather-proof device.
Typical applications that utilize the 100 Series are heat tracing, freeze protection, processing equipment (pumps, compressors), inputs for annunciator panels, and fire suppression systems.
UE壓力開關100系列其他常用型號
UE H100-192-M550-1530
UE H100-484
UE H100-490
UE H100-491
UE H100-703-M201
UE H100-191-M201
UE H100-193-95324
UE H100-192-M446
UE H100-358
UE H100-376
UE H100-701-95122
UE H100-171
UE H100-171-M201-M446
UE H100-192-95317
UE H100-193-M550
UE Pressure and Vacuum switches NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于UE壓力開關H100-191-M201的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for UE products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.

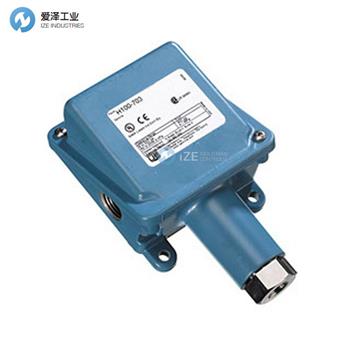

UE壓力開關100系列H100-191-M201產品介紹
