GT ATTUATORI執行器GT系列技術參數
Supply | Filtered air ISO 8573-1:2010 |
Operating Pressure | 2 to 10 bar (29 to 145 psi) |
Torque Output | 2.4 to 15,300 Nm (21 to 135,400 lbf.in) |
Temperature Ranges | |
Standard: | -50 to +70 oC (-58 to +158 oF) NBR O-ring, Delrin guide |
Optional: | -15 to +160 oC (+5 to +320 oF) Viton O-ring, IXEF guide |
Optional: | -60 to +200 oC (-76 to +392 oF) Silicone O-ring, PTFE guide |
Rotation | 90° |
Optional: | 120°, 180°, 240°, or custom angles |
Stroke Adjustment | -5° to +5° from 90° position Single- or dual-direction travel stops acting upon the piston(s) |
Optional: | Extended travel adjustment on the opening stroke is available with installation of a longer stop screw |
Materials | |
Body: | Anodised aluminium ASTM 6063 |
Optional: | Stainless steel AISI 316 (limited sizes) or epoxy paint |
Pinion: | Carbon steel EN 11SMnPb3 electroless nickel plated |
Optional: | Stainless steel AISI 316 |
Pistons: | Die-cast aluminium UNI EN1706 |
End caps: | Die-cast aluminium UNI EN1706, EN AC- 46100, epoxy paint (black RAL 9005) |
Spring cartridge: | Carbon steel, epoxy paint |
GT ATTUATORI執行器GT系列介紹
GT 系列單作用和雙作用氣動活塞執行器。
設計
單作用和雙作用氣動活塞執行器（齒輪齒條）
行動
標準 90°，可選 120°、180°、240° 或自定義角度
行程調整
從 90° 位置 -5° 到 +5°
單端和雙端止動選項
扭矩
2.4 至 15,300 牛米（135,400 磅力英寸）
空氣壓力
2 至 10 bar
供應
過濾空氣 PNEUROP/ISO 4 級，可根據要求提供其他流體
材料
帶鑄鋁端蓋的擠壓鋁制主體 - 可選表面處理
耐腐蝕氣缸和鍍鎳小齒輪

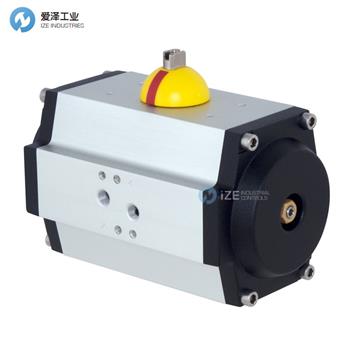

GT Range single- and double-acting pneumatic piston actuators.
Design
Single- and double-acting pneumatic piston actuators (rack and pinion)
Action
Standard 90°, optional 120°, 180° , 240° or custom angles
Stroke adjustment
-5° to +5° from 90° position
Single and double end stop options
Torques
2.4 to 15,300 Nm (135,400 lbf.in)
Air pressure
2 to 10 bar
Supply
Filtered air PNEUROP/ISO class 4, other fluids on request
Materials
Extruded aluminium body with cast aluminium end caps – optional surface treatment available
Corrosion resistant cylinders and nickel-plated pinion
GT ATTUATORI執行器GT系列其他常用型號：
GT ATTUATORI GTKB.83x90.07.NP17C.F05F07.000
GT ATTUATORI GTKB.75x90.DA.NP17A.F05/F07.040
GT ATTUATORI GTKB.75x180.DA.NP17A.F05/F07.000
GT ATTUATORI GTKB.83x90.DA.NP17A.F05/F07.000
GT ATTUATORI GTKB.52x90.DA.NP14A.F03/F05.000
GT ATTUATORI GTKB.43x90.DA.NP11A.F03/F05.000
GT ATTUATORI GTKB.83x90.DA.NP17C.F05/F07.000
GT ATTUATORI GTKB.43x90.DA.NP09A.F03/F05.000
GT ATTUATORI GTKB.43x90.DA.NP09D.F03/F05.000
GT ATTUATORI GTKB.92x90.DA.NP17A.F05/F07.000
GT ATTUATORI GTKB.92x180.DA.NP17A.F05/F07.000
GT ATTUATORI GTKB.52x180.DA.NP14A.F03/F05.000
GT ATTUATORI GTKB.92x90.DA.NP17D.F05/F07.000
GT ATTUATORI GTKB.83x90.DA.NP17D.F05/F07.000
GT ATTUATORI GTKB.75x90.DA.NP17D.F05/F07.000
GT ATTUATORI Actuator NEW + ORIGINAL+ ONE YEAR WARRANTY
