CONCENS執行器CON50系列技術參數
Max. static load/ | PA brackets: 4700 N Alu/Stainless steel: 16800 N |
Self locking force | Depending on stroke length for push-applications |
Temperature | Operation: - 20 ?C to + 70 ?C |
Protection class | IP66 |
Cable specification | 1 m, 2 x 1.3 mm2 (AWG16), ? = 6.4 mm, black, Molex Mini-Fit Jr. 6 pin |
Bending Radius | 6 x cable diameter |
Materials | Motor and actuator tube are powder coated steel |
Duty cycle | Max. 10 % or 2 minutes in use followed by 18 minutes rest |
Color | Black (RAL 9005) |
CONCENS執行器CON50系列介紹
Con50是尺寸或功能的理想選擇。這款I(lǐng)P66等級的直列式電動執行器由粉末涂層鋼制成，帶有鋁制或不銹鋼活塞，提供堅固的設計來保護電動機和電氣設備。con50帶有聚酰胺，鋁或不銹鋼制成的各種標準支架，易于安裝。

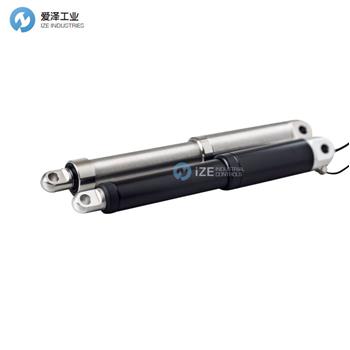

Con50 is ideal where size is limited by design or functionality. This IP66-rated electric in-line actuator is made of powder-coated steel with an aluminium or stainless-steel piston, providing a sturdy design that protects the motor and electrics. con50 comes with various standard brackets in polyamide, aluminium or stainless steel for easy mounting.
CONCENS執行器CON50系列其他常用型號：
CONCENS 500300+243310-030000
CONCENS 500100-273312-000000
CONCENS 500300-143362+449900
CONCENS 500300-141312-149000
CONCENS 500300-243312+449900
CONCENS 500300+241362+000000
CONCENS 500100-243312+020000
CONCENS Linear In-line Actuator NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于CONCENS執行器500100-243312+020000的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for CONCENS products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: .
CONCENS執行器CON50系列500100-243312+020000介紹
