J+J執行器J4C系列技術參數
Voltage VDC/VAC 50/60Hz -0/+5% | 24-240 VDC/VAC |
Operation time unload | 13 Sec /90° |
Maximum torque break | 60 Nm / 530 lb/in |
Maximum operational torque | 55 Nm / 486 lb/in |
Duty rating | 0.75 |
Max. Working angle | 0° to 2700 |
Limit switch | 4 SPST NO micro (2 motor stop and 2 confirmations) |
Automatic heater | 3,5 W |
Big Plug | EN175301-803 FORM A |
Small Plug | DIN43650/C |
Protection IEC 60529 rating | IP67 |
Temperature | -20°C +70°C/-40F +1580F |
ISO 5211 Plate | Standard: F05/F07 |
DIN 3337 Female output drive | Standard: *17 Optional: *11, *14mm |
Weight | 2,4 Kg |

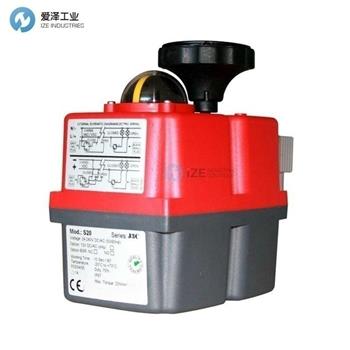

J+J執行器J4C系列介紹
這是 1/4 回轉執行器系列，電壓范圍為 24-240 VDC/VAC 或 12 VDC/VAC。
該系列的一個新特點是采用無刷技術的電機，效率更高，因此更耐用。適用于 24-240 VDC/VAC 的多電壓范圍，以 J4CS 格式銷售；適用于 12 VDC/VAC，以 J4CB 格式銷售。 它還包括合并選項的可能性，例如專為本系列設計的 DPS（數字定位系統）和 BSR（電池系統返回）套件。
This is series of ? turn actuators with a voltage range of 24-240 VDC / VAC or 12 VDC / VAC.
A new feature of this range is a motor with Brushless technology, which is more efficient and therefore longer-lasting. It is marketed in the format J4CS for the multi-voltage range spanning from 24-240 VDC / VAC and in format J4CB for 12 VDC / VAC. It also includes the possibility of incorporating all the options, such as our DPS (Digital Positioner System) and BSR (Battery System Return) kits, which have been designed for this series.
J+J執行器J4C系列其他常用型號：
J+J J4C-S20
J+J J4C-S35
J+J J4C-S55
J+J J4C-S85
J+J J4C-S140
J+J J4C-S300
J+J J4C-B20
J+J J4C-B35
J+J J4C-B55
J+J J4C-B85
J+J J4C-B140
J+J J4C-B300
J+J ACTUATOR NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于J+J執行器J4C-S85的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for J+J products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
