WATER HYDRAULICS驅動器簡介
Part No | Description |
561-002 | Open Loop Flow Control Joystick Demand |
561-003 | Closed Loop Pressure Control Digital Demand |
561-004 | Closed Loop Pressure Control Analogue Demand 0-10v DC |
561-005 | Open Loop Flow Control Analogue Demand Uni-Directional 0-10v DC |
561-006 | Open Loop Flow Control Analogue Demand Bi-Directional 0-10v DC |
ST5-Q-NN MOBUS | 24-48 VDC, Step& diercrion, Volocity (Oscilator), Streaming Comamandes, Anolog Positioning, Encoder Folwwing, Q Programming, SiNet Hub Command, Mobus, 0.1-5.0 A/Phase, RS-232 |
ST5-Q-NN MOBUS | 24-48 VDC, Step& diercrion, Volocity (Oscilator), Streaming Comamandes, Anolog Positioning, Encoder Folwwing, Q Programming, Mobus, 0.1-5.0 A/Phase, RS-232 ,RS-485 |
ST5-Q-NN ST | 24-48 VDC, Step& diercrion, Volocity (Oscilator), Streaming Comamandes, Anolog Positioning, Encoder Folwwing, Q Programming, SiNet Hub Command, Mobus, 0.1-5.0 A/Phase, RS-232 |
WATER HYDRAULICS驅動器ST5-Q-NN介紹
? Programmable microstepping drive with advanced current control
? Q Programmer? for robust motion control programming
? 744 lines of stored program capability
? Math calculations using analog and digital parameters
? Supports all “S” drive control modes as well
? Modbus/RTU for easy PLC and HMI communication
? Compatible with many 3rd party HMIs
? Wide current range 0.1 to 5.0 A/phase (peak of sine) with idle current reduction
? Advanced anti-resonance algorithm
? Torque ripple smoothing
? 8 digital inputs, 4 digital outputs, optically isolated
? 2 analog inputs, +/-10 volt range
? RS-232 cable and mating connectors included
The ST5-Q-NN stepper drive is a DC-powered microstepping drive for controlling two-phase, bipolar step motors. It offers advanced current control and a sophisticated 3rd generation anti-resonance algorithm that electronically dampens motor and system resonances to improve motor smoothness and usable torque over a wide speed range. The drive also employs electronic torque ripple smoothing and microstep emulation to greatly reduce motor noise and vibration. The drive must be powered from 24-48 VDC and can output up to 5.0 A/phase (peak-of-sine) to the step motor. Over-voltage, over-temperature and over-current protection features prevent damage while running in adverse conditions. The drive is complemented by a specifically matched set of NEMA 11 through NEMA 23 frame stepper motors .
The ST5-Q-NN can operate in all of the same control modes as the S model (pulse & direction, velocity, streaming commands, SiNet Hub operation), plus it has the ability to run stand-alone Q programs stored in non-volatile memory. Q programs are created using the Q Programmer? software, which provides multi-tasking, math functions, conditional processing, data register manipulation, and more features in a robust yet simple text-based programming language. The drive is setup and configured using Applied Motion’s ST Configurator? software. Preconfigured motor setup files included with ST Configurator? make it easy to set up the drive for optimum results.
For connecting to external devices such as control signals, incremental encoders, limit switches, proximity or photoelectric sensors, PLC I/O, lamps, and other devices, the drive comes with 8 digital inputs, 4 digital outputs, and 2 single-ended analog inputs (analog inputs can be wired together as 1 differential analog input). Adjustable digital filters are present on the digital inputs for enhanced reliability in noisy environments.
The drive comes with an RS-232 port for configuration, serial communications and programming. All ST drives are CE approved and RoHS compliant.
?具有先進電流控制功能的可編程微步進驅動器
?Q Programmer?用于強大的運動控制編程
?744行存儲程序功能
?使用模擬和數字參數進行數學計算
?也支持所有“ S”驅動器控制模式
?Modbus / RTU，易于進行PLC和HMI通訊
?與許多第三方HMI兼容
?較寬的電流范圍，每相0.1至5.0 A（正弦峰值），并具有閑置電流減少功能
?先進的反共振算法
?轉矩脈動平滑
?8個數字輸入，4個數字輸出，光電隔離
?2個模擬輸入，+ /-10伏范圍
?隨附RS-232電纜和配對連接器
ST5-Q-NN步進驅動器是一個直流電微步進驅動器，用于控制兩相，雙極步進電機。它提供了先進的電流控制和完善的第三代反共振算法，可通過電子方式抑制電動機和系統的共振，從而在較寬的速度范圍內提高電動機的平滑度和可用轉矩。該驅動器還采用了電子轉矩紋波平滑和微步仿真，可大大降低電動機的噪音和振動。驅動器必須由24-48 VDC供電，并且每相最多可輸出5.0 A（正弦峰值）到步進電動機。過電壓，過熱和過電流保護功能可防止在不利條件下運行時造成損壞。該驅動器由一組特別匹配的NEMA 11到NEMA 23框架步進電機來補充。
ST5-Q-NN可以在與S模型相同的所有控制模式下運行（脈沖和方向，速度，流命令，SiNet Hub操作），此外，它還可以運行存儲在非模型中的獨立Q程序。易失性內存。使用Q Programmer?軟件創建Q程序，該軟件以健壯但簡單的基于文本的編程語言提供多任務處理，數學功能，條件處理，數據寄存器操作以及更多功能。使用Applied Motion的ST Configurator?軟件對驅動器進行設置和配置。 ST Configurator?隨附的預配置電機設置文件可輕松設置驅動器以獲得最佳效果。
為了連接到外部設備，例如控制信號，增量編碼器，限位開關，接近或光電傳感器，PLC I / O，燈和其他設備，該驅動器帶有8個數字輸入，4個數字輸出和2個單端模擬量輸入（模擬輸入可以作為1個差分模擬輸入連接在一起）。數字輸入上存在可調數字濾波器，以提高在嘈雜環境中的可靠性。
該驅動器帶有一個RS-232端口，用于配置，串行通信和編程。所有ST驅動器均通過CE認證并符合RoHS。

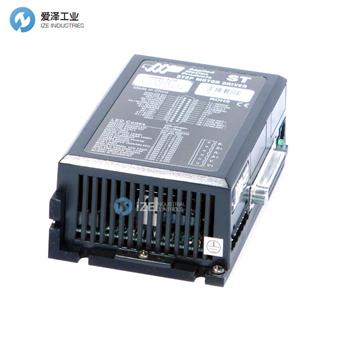

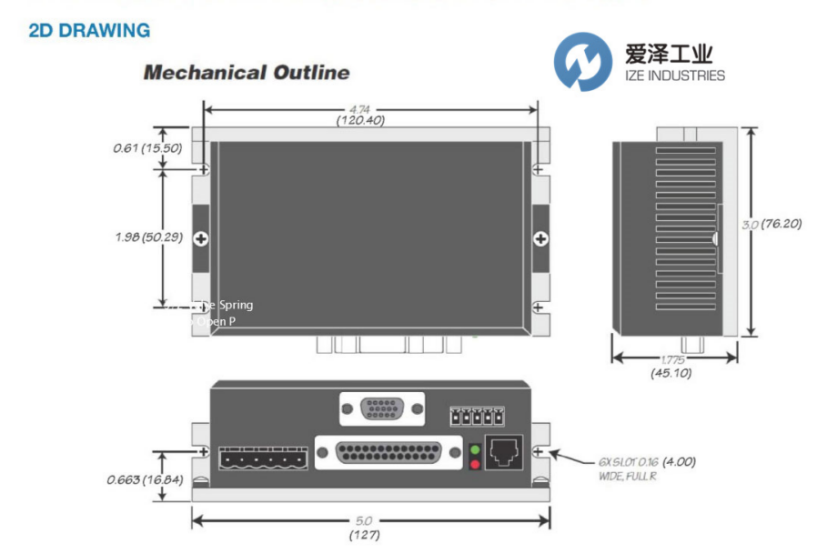

WATER HYDRAULICS驅動器ST5-Q-NN尺寸圖
WATER HYDRAULICS驅動器其他常用型號：
WATER HYDRAULICS 561-002
WATER HYDRAULICS 561-003
WATER HYDRAULICS 561-004
WATER HYDRAULICS 561-005
WATER HYDRAULICS 561-006
WATER HYDRAULICS ST5-Q-NN MOBUS
WATER HYDRAULICS ST5-Q-NN MOBUS
WATER HYDRAULICS ST5-Q-NN ST
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于WATER HYDRAULICS驅動器ST5-Q-NN的疑問，請隨時與我們聯系（021-31006702）。我們將盡全力解決您的問題。
有關WATER HYDRAULICS驅動器ST5-Q-NN更詳細的信息或者購買WATER HYDRAULICS相關產品，請致電愛澤工業。
If you have any question, please feel free to dial 0086-21-3100 6702 or browse our website: jjxdch.cn.
WATER HYDRAULICS驅動器ST5-Q-NN技術資料
