SAMSON氣動增壓器3755-21300000000000.00技術參數
Pneumatic volume booster | Type 3755 |
Design | (Flanged-on) threaded exhaust port |
Pneumatic connections | Supply air and actuator ISO 228 - G ?, signal ISO 228 - G ? |
Exhaust version | (Flanged-on) threaded exhaust port ISO 228 - G 1 |
Flow coefficient | Supply KVS = 2.5 m3/h, exhaust KVS = 2.5 m3/h |
Dynamic response | Standard (normal control) |
Body material | Aluminum |
Color | Gray-beige, structured finish, RAL 1019 (aluminum body |
Temperature range | Standard temperature, –40 to +80 °C |
SAMSON氣動增壓器3755系列介紹
氣動增壓器
-氣動容積增壓器安裝在定位器和執行器之間。 它為執行器提供氣流輸出，其壓力與信號壓力完全對應，但它具有更高的輸出體積。
-緊湊的鋁制或不銹鋼機身
-適用于安全儀表系統
-低遲滯帶來快速動態響應
-具有線性特性的旁路限制
-旁路限制設置可以鉛封
-燒結 PE 濾盤確保低噪音排放
-恒定反向壓力

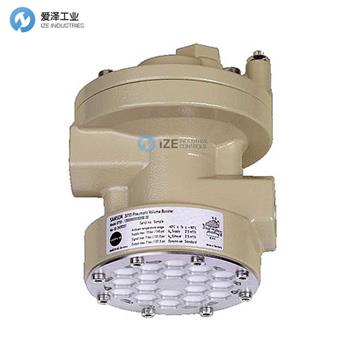

Pneumatic volume booster
-The pneumatic volume booster is mounted between the positioner and actuator. It supplies the actuator with an air flow output whose pressure corresponds exactly to the signal pressure, except that it has a much higher volume output.
-Compact aluminum or stainless steel body
-Suitable for safety-instrumented systems
-Fast dynamic response due to low hysteresis
-Bypass restriction with linear characteristic
-Bypass restriction setting can be lead-sealed
-Sintered PE filter disk ensures low noise emissions
-Constant reversing pressure

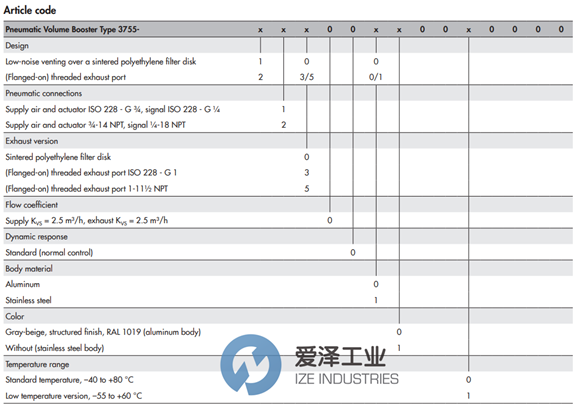

SAMSON氣動增壓器3755系列選型
SAMSON氣動增壓器3755系列其他常用型號：
SAMSON 3755-21300000000000.00
SAMSON 3755-12000000000000.00
SAMSON 3755-11000000000000.00
SAMSON Pneumatic volume booster NEW + ORIGINAL+ ONE YEAR WARRANTY
