DUPLOMATIC電磁閥E5*4系列性能
PERFORMANCES | E4*4 | E4HP4 | E5P4 | E5HP4 | |
Maximum operating pressure | bar |
|
|
|
|
Maximum flow rate from port P to A - B - T | l/min | 150 | 600 | ||
Ambient temperature range | °C | -20 / +50 | |||
Fluid temperature range | °C | -20 / +80 | |||
Fluid viscosity range | cSt | 10 ÷ 400 | |||
Fluid contamination degree | according to ISO 4406:1999 class 20/18/15 | ||||
Recommended viscosity | cSt | 25 | |||
Mass: E*P4-S, RK | kg | 7 | 15,6 | ||
DUPLOMATIC電磁閥E5*4系列介紹
E*P4先導閥由一個四通液壓分配器組成，該分配器的安裝表面符合ISO 4401標準，由ISO 4401-03電磁換向閥控制。
它們以CETOP P05和ISO 4401-05尺寸制造，最大流量為150 l / min，以ISO 4401-08尺寸制造，最大流量為600 l / min。
它們可用于不同的閥芯類型（請參閱參數2），并且具有用于打開控制裝置的某些選項。
它們可用于X和Y方向的螺線管和液壓控制。
提供高壓（H）版本。
還可提供鋅鎳表面處理，以確保耐鹽霧性長達600小時。
The E*P4 piloted valves are constituted of a 4-way hydraulic operated distributor with a mounting surface in accordance with the ISO 4401 standards, operated by a ISO 4401-03 solenoid directional valve.
They are made in CETOP P05 and ISO 4401-05 sizes with flow rates up to 150 l/min, and in ISO 4401-08 size with flow rates up to 600 l/min.
They are available with different spool types (see par. 2) and with some options for the opening control.
They are available with both the solenoid and the hydraulic control from the X and Y ways.
A version for high pressures (H) is available.
It is available also with zinc-nickel surface treatments, that ensures a salt spray resistance up to 600 hours.
DUPLOMATIC電磁閥E5*4系列選型介紹
DUPLOMATIC電磁閥E5*4系列其他常用型號：
DUPLOMATIC E5P4-TA/40N-A230K1/CM
DUPLOMATIC E5P4-S3/40N-A230K1/CM
DUPLOMATIC E5P4-S1/E/40N-D24K1
DUPLOMATIC E5P4-S12/PE/40N-D24K1
DUPLOMATIC E5P4-S1/40N-D24K1
DUPLOMATIC E5HP4-S1/E/40N-D24K1
DUPLOMATIC E5P4-TA/40N-A230K1
DUPLOMATIC E5P4-TA/C-Z-I/40N-A230K1/CM
DUPLOMATIC E5P4-S4/D-E/40N-D24K1
DUPLOMATIC E5P4-TA/EI/40N-D220K1/CM
DUPLOMATIC E5P4-S3/G/40V-D24K1
DUPLOMATIC E5P4-S7/E/40N-A230K1
DUPLOMATIC E5P4-S1/I/40N-A110K1/CM
DUPLOMATIC E5P4-S3/D-E/40N-D24K1/CM
DUPLOMATIC Directional valves pilot operated NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于DUPLOMATIC電磁閥E5P4-TA/40N-A230K1/CM的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for DUPLOMATIC products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.

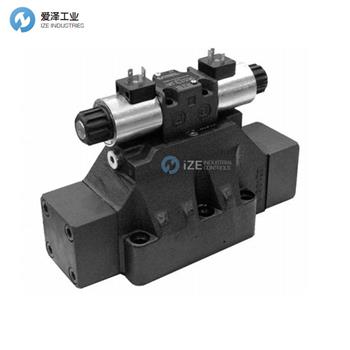

DUPLOMATIC電磁閥E*P4系列E5P4-TA/40N-A230K1/CM產品介紹
