AVENTICS電磁閥 HF04系列規格描述
Blocking principle | Double base plate principle |
Working pressure min./max | -0.9 ... 10 bar |
Control pressure min./max | 3 ... 8 bar |
Ambient temperature min./max | -5 ... 50 °C |
Medium temperature min./max. | 0 ... 50 °C |
Medium | Compressed air |
Max. particle size | 5 μm |
Oil content of compressed air | 0 ... 5 mg/m3 |
Nominal flow Qn | 400 l/min |
Number of valve positions max. | 24 |
Number of solenoid coils max. | 24 |
Protection class with connection | IP65 |
DC operating voltage | 24 V |
Voltage tolerance DC | -10% / +10% |
AVENTICS電磁閥 HF04系列介紹

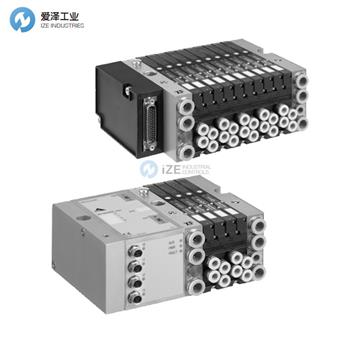

AVENTICS Series HF04/HF04-XF Valve systems
The AVENTICS Series HF04/HF04-XF are universal and flexible valve systems, which offer numerous electrical connection possibilities and pneumatic functions.
Features
Series HF04 with up to 24 valves and 24 coils
Series HF04-XF with up to 32 valves and 32 coils
Series HF04-XF the working ports are rotatable
High connectivity through Multipol or Fieldbus connection
AVENTICS系列HF04 / HF04-XF閥門系統
AVENTICS系列HF04 / HF04-XF是通用和靈活的閥門系統，可提供多種電氣連接方式和氣動功能。
特征
HF04系列，最多具有24個閥和24個線圈
HF04-XF系列，最多具有32個閥和32個線圈
HF04-XF系列的工作端口可旋轉
AVENTICS電磁閥 HF04系列其他常用型號：
AVENTICS HF04VER54GI12
AVENTICS R480093147
AVENTICS HF04-XF
