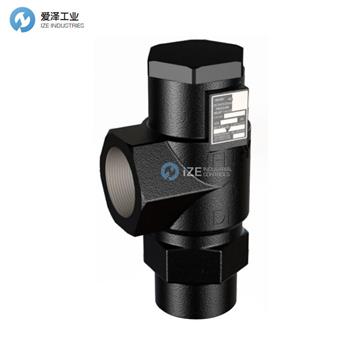

HENRY泄壓閥5600-A產品參數
Specification | |
conn size(inch) | |
inlet | 1/2FPT |
outlet | 3/4FPT |
dimensions(inch) | |
A | 2.69 |
B | 1.63 |
orifice diameter | 0.703 |
weight(lbs) | 3.6 |
| |
HENRY泄壓閥5600-A產品介紹
主要特點
?NPT和SAE火炬連接
?提供適用于R410A和CO的高壓管線（500-675 PSI）。
?從平均設定壓力算起，閥門在10％超壓之前完全打開
?重置壓力范圍通常為爆破壓力的1040％（排污）
?閥門帶有單獨的序列號
?可根據要求提供UV-I壓力測試報告
技術指標
所有HENRY的設定壓力范圍均為沖壓壓力的+/-3％。
允許的工作溫度= -20℉至+ 225℉（-29℃至+ 107℃）
亨利技術公司的泄壓閥上印有ASME紫外線符號和NB，以表明其通過了美國國家標準委員會的認證。此外，泄壓閥的設計和注冊在加拿大使用。
閥體材料
52系列安全閥具有黃銅閥體。內部零件由黃銅和碳鋼制成。 53系列閥具有不銹鋼閥體。內部零件由不銹鋼和碳鋼制成。
56系列閥門具有鑄鐵或球墨鑄鐵閥體。內部零件由不銹鋼和碳鋼制成。所有閥都有特氟龍閥座。
Main Features
?NPT and SAE flare mnnections
?High pressure line available (500-675 PSI) suitable for R410A & CO. See model numbers 5233AX, 5234AX and 5235AX
?Valves fully open before 10% overpressure when taken from the average set pressure
?Reset pressure ranges typically 1040% (blowdown) from pop pressure
?Valves bear individual serial numbers
?UV-I pressure test reports available upon request
Technical Specifications
All Henny Technologies PRV’s have a set pressure range +/-3% of the stamped pressure.
Allowable operating temperature = -20℉ to +225℉ (-29℃ to +107℃)
Henry Technologies' Relief Valves are stamped with the ASME UV symbol and NB to indicate National Board certifi?tlon as to capacities. Additionally,Pressure Relief Valves are designed and registered for use in Canada.
Materials of Construction
The 52 series Relief Valves have brass valve bodies. The internal parts are made of brass and carbon steel. The 53 series valves have stainless steel valve bodies. Internal parts are made from stainless steel and carbon steel.
The 56 series valves have cast or ductile iron valve bodies. The internal parts are made from stainless steel and carbon steel. All valves have Teflon valve seats.
HENRY泄壓閥5600-A其他常見型號：
HENRY 5600-A
HENRY 5600
HENRY 5601
HENRY 5602
HENRY 5603
HENRY 5604
HENRY 5250A-1/2
HENRY 5250-1/2
HENRY 5252-3/4
HENRY 5233AX
HENRY 5234AX
HENRY 5235AX
HENRY Relief Valve NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于HENRY泄壓閥5600-A的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for HENRY products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: .

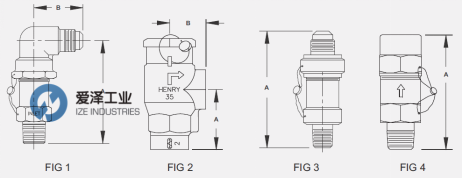

HENRY泄壓閥5600-A產品介紹及外觀尺寸
