POTTER壓力開關PS40-EX技術參數
Technical Specifications | |
Dimensions | 152mm Dia. x 178mm H (6” Dia. x 7” H) |
Enclosure | Cast aluminum |
Pressure Connection | 1/2” NPT male brass fitting |
Factory Setting | One switch operates on pressure decrease at: 206 kPA/2.1 BAR/30 PSI |
Pressure Range | 69 kPA/.69 BAR/10 PSI to 1207 kPA/12.07 BAR/175 PSI |
Maximum | 14 kPA/.14 BAR/2 PSI at 138 kPA/1.38 BAR/20 PSI |
Maximum System Pressure | 2068 kPA/20.68 BAR/300 PSI |
Switch Contact Ratings | Two Sets of SPDT (Form C) |
Conduit Entrance | 1/2” NPT female conduit opening |
Environmental Specifications | For use in hazardous locations classified by CENELEC: |
Enclosure Rating | IP66/NEMA 4,9 |
Temperature Rating | —40°C to 60°C (-40°F to 140°F) |
Cover Tamper | Cover incorporates tamper resistant fastener that requires a special key for removal. One key is supplied with each device. |
Service Use | NFPA 13, 13D, 13R, 72 |
POTTER壓力開關PS40-EX產品介紹
Potter PS40-EX監控壓力致動開關主要用于檢測位于上述危險位置的自動噴水滅火系統中正常系統壓力的升高和/或降低。典型應用包括：干管系統，預作用空氣/氮氣監控，壓力罐，空氣和水供應。 PS40-EX開關出廠設置為正常系統壓力為40 PSI（2.8 BAR）。標有LOW字樣的開關設置為在30 PSI（2.1 BAR）的壓力降低10 PSI（7 BAR）時運行。標有“ HIGH”字樣的開關設置為在50 PSI（3.5 BAR）的壓力增加10 PSI（7 BAR）時運行。
The Potter PS40-EX Supervisory Pressure Actuated Switch is designed primarily to detect an increase and/or decrease from normal system pressure in automatic fire sprinkler systems located in hazardous locations classified as shown above. Typical applications are: Dry pipe systems, pre-action air/nitrogen supervision, pressure tanks, air supplies, and water supplies. The PS40-EX switch is factory set for 40 PSI (2,8 BAR) normal system pressure. The switch marked with the word LOW is set to operate at a pressure decrease of 10 PSI (7 BAR) at 30 PSI (2,1 BAR). The switch marked with the word HIGH is set to operate at a pressure increase of 10 PSI (7 BAR) at 50 PSI (3,5 BAR).
POTTER壓力開關其他常用型號：
POTTER PIVSU-EX-O
POTTER VSR-FEX
POTTER PS40-EX
POTTER PS10-EX
POTTER OSYSU-EX
POTTER OSYSU-EX-O
POTTER PIVSU-EX
POTTER Explosion-proof pressure switch NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于POTTER壓力開關PS40-EX的疑問，請隨時與我們電聯，（021-3100 6702），我們將盡全力解決您的問題。
If you have any question for POTTER products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: jjxdch.cn.

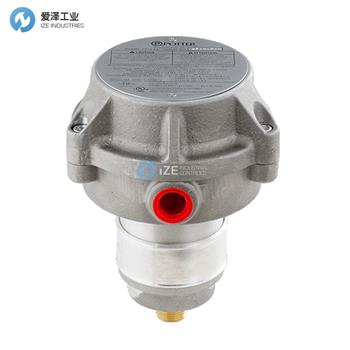

POTTER壓力開關PS40-EX介紹
